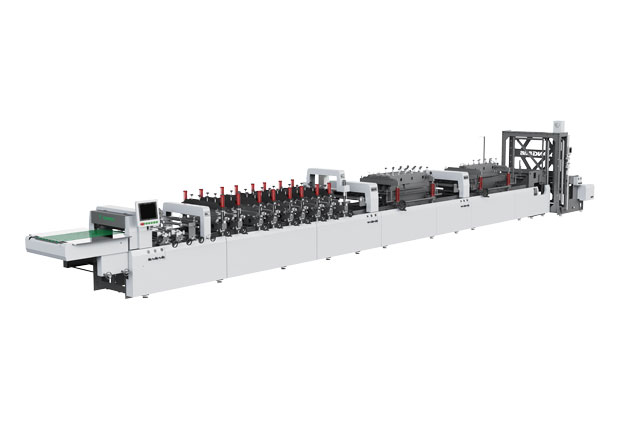

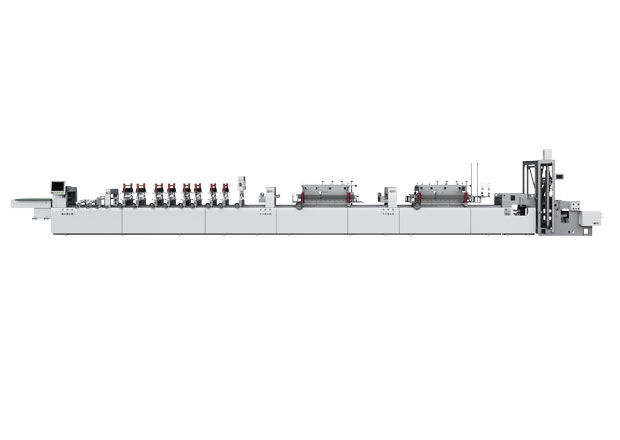

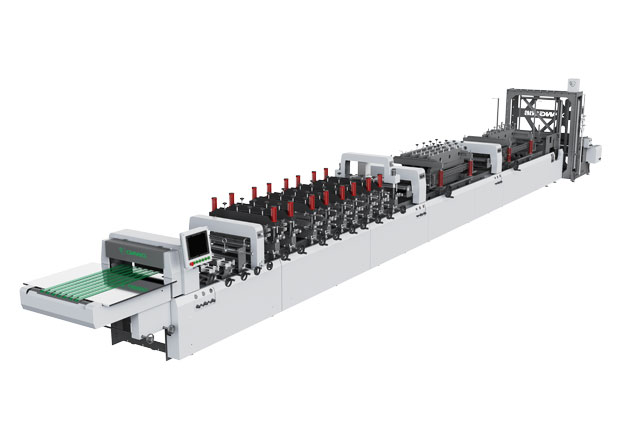

Ziper Pouch Making Machine

As an industry leader, OUNUO delivers high-performance zipper pouch machines for food, cosmetics, and pharmaceuticals. Our servo-driven systems produce 60-100 reclosable pouches/minute with precision zipper attachment and airtight seals. Featuring quick-change tooling and IoT monitoring, we ensure consistent quality while reducing material waste.

Features of Ziper Pouch Making Machine

1

Precision Zipper Application

Achieves ≤0.15mm alignment accuracy for smooth reclosable functionality.

2

High-Speed Production

Servo-driven system delivers 80-120 pouches/minute with consistent output.

3

Intelligent Quality Control

Integrated vision system detects and rejects defective zipper attachments.

4

Material Versatility

Handles various zipper types and multi-layer films from 3-8 layers.

Specifications of Ziper Pouch Making Machine

Available Pouch TypesCenter seal pouch/center seal with gusset pouch/ 4 side seal with gusset pouch/ side enter seal with gusset pouch, etc.
Maximum Pouch Making ShotMax 240 Pcs/min(about 50m/min)
Pouch Making CapacityDepends on film material and thickness.
Applicable MaterialPE/PE, Laminated films,
OPP, BOPP, PET, PE, CPP, etc.
Material Thickness100-230um
Body Film Web Width, Max.1300mm
Body Film Web Dia, Max.Φ800mm
Paper Core Dia, Max.3 inch
Pouch Making Width:Pouch Making Length:
Pouch Making Width:
①. Center seal flat pouch
     200-640mm
②. Center seal with gusset

L=30-160mm (gusset folded)
2L=200-640mm		Pouch Making Length:
Pouch making length: 100—420mm (More than 420mm adopts multipled feed)
Gusset Folding LengthL=30-160mm
2L=200-640mm
Positioning Accuracy≤ ±1mm
Heat Sealing MethodMechanical Press Seal
Total Power123kW
Electrical Source4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-28500 * W-5000 * H-2100(mm)
Weight13000kg


Machine

Ziper Pouch Making Machine Gallery

OUNUO's zipper pouch machine achieves ±0.1mm zipper alignment accuracy with laser-guided positioning for perfect reclosable functionality every time.
