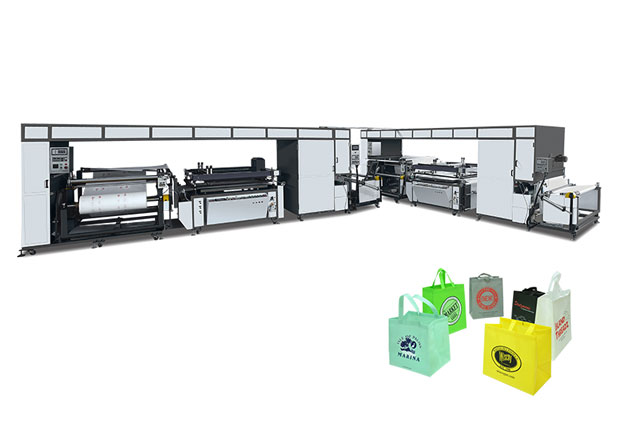

Two Color Non Woven Screen Printing Machine

This machine has a vertical design structure, which can save a lot of space compared to ordinary horizontal screen printing machine. It has two printing units that can automatically print non-woven fabrics. Each unit has independent computer control and can be used separately for single color printing.

Features of Two Color Non Woven Screen Printing Machine

1

Accurate Overprinting: using servo drive or optical alignment system, the two-color overprinting error is ≤ 0.2mm, ensuring clear pattern layering.

2

Flexible Adaptation: adjustable screen pressure and stroke design, compatible with non-woven fabrics of different thicknesses and expandable for UV or water-based ink printing.

Specifications of Two Color Non Woven Screen Printing Machine

Model No.12010II
Max. Printing Size1200×1100mm
Non-woven Fabric Roll Width1250mm
Non-woven Fabric Thickness45g/㎡-100g/㎡
Max. Diameter of Rolls800mm
Printing Speed500-900m/h
Voltage & Total Power380V 3p4n 85KW
Machine Size15500×1800×2200mm
Basic StructureFeeding Part＋Printing Part＋Drying Part＋Printing Part＋Drying Part＋Collecting Part
Weight6000kg


Machine

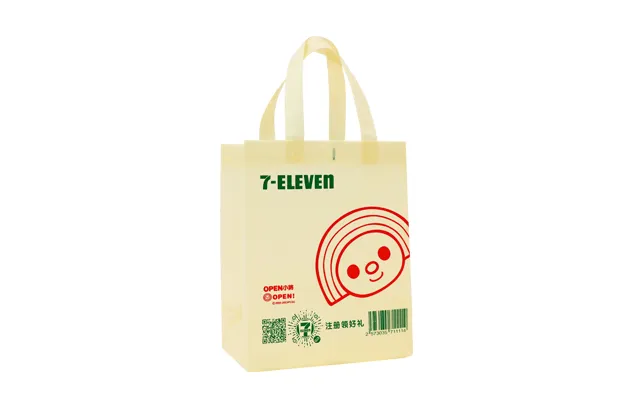

Two Color Non Woven Screen Printing Machine Gallery

This machine is suitable for two color printing scenarios such as shopping bags, medical packaging, industrial filter cloth, etc. It is an ideal choice to enhance product added value and market competitiveness.
