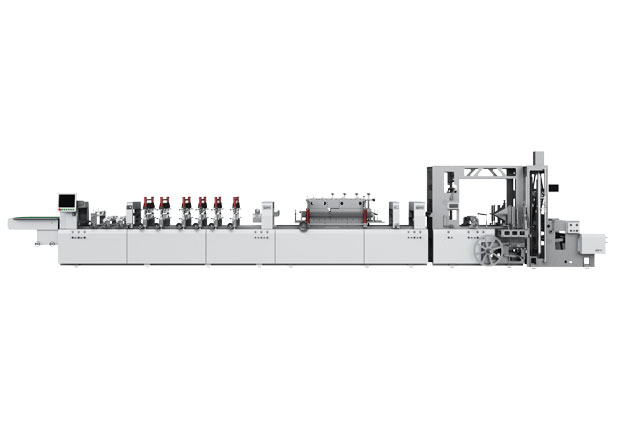

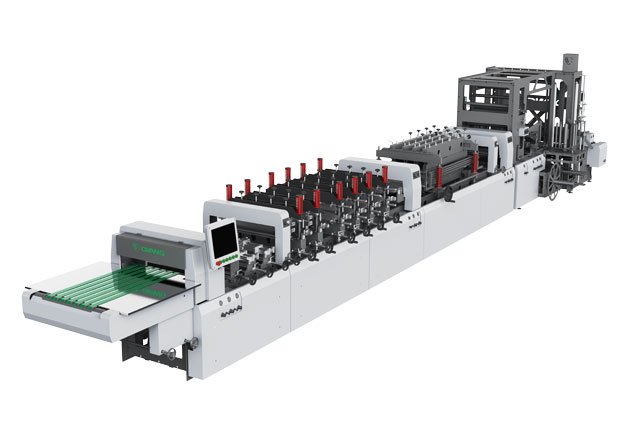

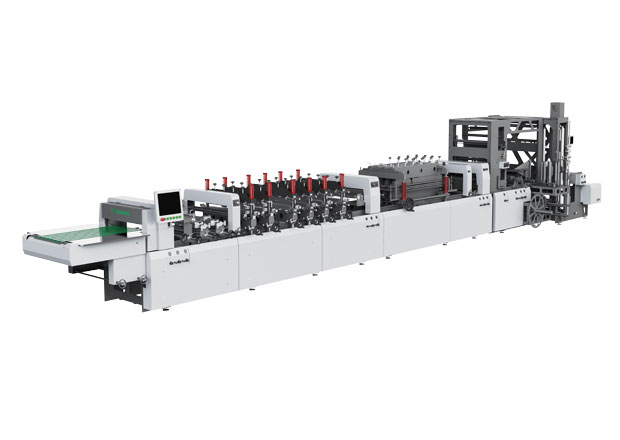

Standup Pouch Making Machine

As an industry innovator, OUNUO delivers high-speed standup pouch machines for food, pharma & cosmetics. Our servo-driven systems produce 60-100 pouches/minute with precision spout attachment and 8-color printing. Featuring IoT monitoring and quick-change tooling, we ensure premium quality while reducing waste.

Features of Standup Pouch Making Machine

1
Ultra-Precise Production
Achieves ≤0.1mm registration accuracy for flawless multi-layer pouch forming and printing alignment.


2

Smart Automation

Integrated IoT system enables real-time monitoring with automatic defect detection and production analytics.

3

Material Versatility

Processes all recyclable films (PET/AL/PE) from 3-8 layers with quick-change tooling.

4

Sustainable Efficiency

Energy-saving design reduces power consumption by 25% while maintaining 80+ pouches/minute output.

Specifications of Standup Pouch Making Machine

Available Pouch TypesCenter seal pouch/center seal with gusset pouch/ 4 side seal with gusset pouch/ side enter seal with gusset pouch, etc.
Maximum Pouch Making ShotMax 240 Pcs/min(about 50m/min)
Pouch Making CapacityDepends on film material and thickness.
Applicable MaterialPE/PE, Laminated films, OPP, BOPP, PET, PE, CPP, etc.
Material Thickness100-230um
Body Film Web Width, Max.1300mm
Body Film Web Dia, Max.Φ800mm
Paper Core Dia, Max.3 inch
Pouch Making Width:
①. Center seal flat pouch
     200-640mm
②. Center seal with gusset

L=30-160mm (gusset folded)   2L=200-640mm		Pouch Making Length:
Pouch making length: 100—420mm (More than 420mm adopts multipled feed)
Gusset Folding LengthL=30-160mm
2L=200-640mm
Positioning Accuracy≤ ±1mm
Heat Sealing MethodMechanical Press Seal
Total Power123kW
Electrical Source4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-28500 * W-5000 * H-2100(mm)
Weight13000kg


Machine

Standup Pouch Making Machine Gallery

Versatile Innovation

Quick-change tooling handles spout/zipper pouches in minutes across 15+ material combinations.
