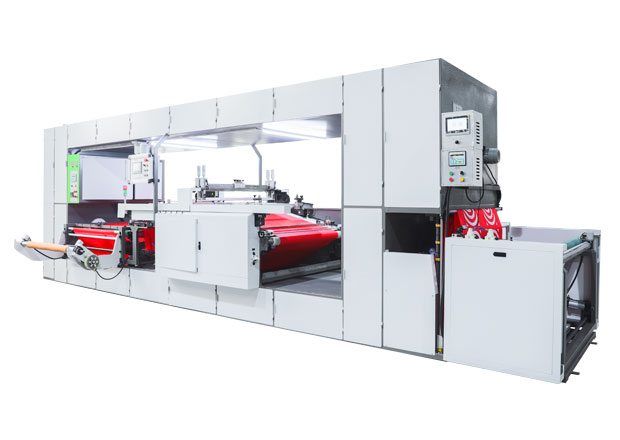

Roll To Roll Screen Printing Machine

This roll to roll screen printing machine is designed for efficient printing of continuous rolls, suitable for single or multi-color precision printing of flexible materials such as non-woven fabrics and films. The equipment adopts an integrated design of fully automatic unwinding, printing, drying and winding, achieving efficient and stable continuous production, especially suitable for large-scale industrial printing needs.

Features of Roll To Roll Screen Printing Machine

1

Automated Production


The roll to roll screen printing machine is designed for high-efficiency automated production. It comes equipped with advanced automatic correction, tension adjustment, and drying systems. These features minimize manual intervention, enhance printing precision, and greatly improve overall production efficiency. Whether used for flexible substrates or electronic film printing, this roll to roll screen printer ensures stable and consistent results.

2

Energy Saving and Environmental Protection


As a leading roll to roll screen printing machine manufacturer, we focus on sustainable production. The equipment includes an optional hot air circulation system that effectively reduces energy consumption while maintaining drying performance. This makes the roll to roll screen printing process more energy-efficient and compliant with modern green manufacturing standards.

Specifications of Roll To Roll Screen Printing Machine

Model No.12010I12010II
Max. Printing Size1200×1100mm1200×1100mm
Non-woven Fabric Roll Width1250mm1250mm
Non-woven Fabric Thickness45g/㎡-100g/㎡45g/㎡-100g/㎡
Max. Diameter of Rolls900mm800mm
Printing Speed1000-1600m/h500-900m/h
Voltage & Total Power380V 3p4n 42KW380V 3p4n 85KW
Machine Size7300×1800×2200mm15500×1800×2200mm
Basic StructureFeeding Part＋Printing Part
＋Drying Part＋Collecting Part		Feeding Part＋Printing Part
＋Drying Part＋Printing Part
＋Drying Part＋Collecting Part
Weight3500kg6000kg


Machine

Roll To Roll Screen Printing Machine Gallery

This roll to roll screen printing machine is widely used in various fields of roll printing and is a professional solution to improve the efficiency of large-scale production and printing quality.

OUNUO Hot Sale Bag Making Machines

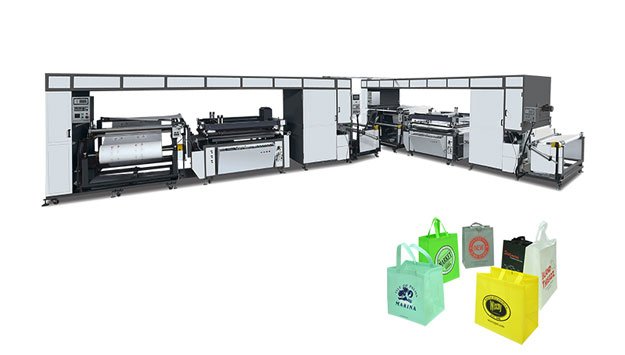

Two Color Non Woven Screen Printing Machine
Two Color Non Woven Screen Printing Machine

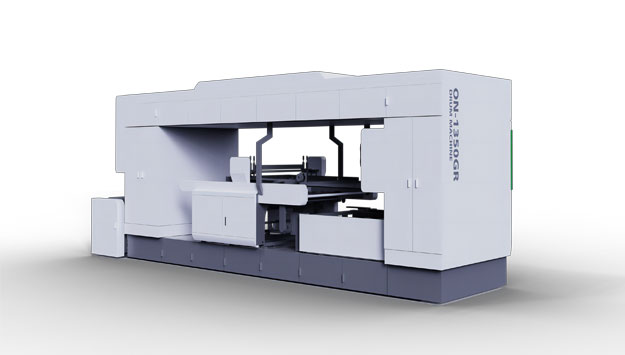

Non Woven Screen Printing Machine
Non Woven Screen Printing Machine

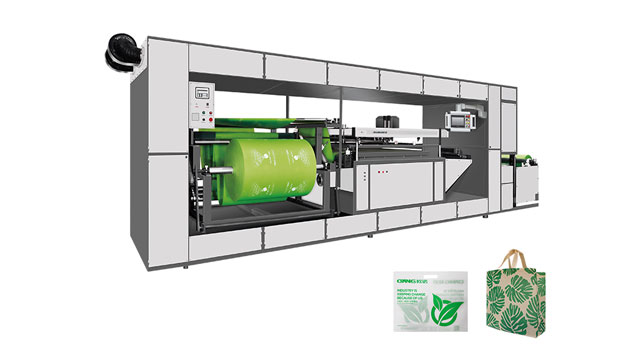

Single Color Non Woven Screen Printing Machine
Single Color Non Woven Screen Printing Machine
