Roll Feed Paper Bag Making Machine

Ounuo's roll-fed paper bag making machine excels in continuous, high-volume bag production. Compatible with square-bottom designs, roll fed paper bag making machine's equipped with servo controls and touch-screen operation. It minimizes material waste and boosts output. Ounuo roll fed paper bag making machine integrates optional printing/double-layer units for enhanced functionality, catering to eco-friendly brands.

Features of Roll Feed Paper Bag Making Machine

1

Continuous Roll Feeding – Uninterrupted production from jumbo rolls

2

Precision Tension Control – Eliminates paper wrinkles

3

Auto Splice Unit – Seamless roll changes during operation

4

Space Optimization – Vertical roll storage saves floor space

Specifications of Roll Feed Paper Bag Making Machine

Model No.A220A330A400A450A460A560
Paper diameter≤1500mm≤1500mm≤1500mm≤1500mm≤1500mm≤1500mm
Core inner diameter⌀76mm⌀76mm⌀76mm⌀76mm⌀76mm⌀76mm
Paper weight70-140gsm80-140gsm80-140gsm80-140gsm80-140gsm90-140gsm
Paper bag width(with handle)
              (without handle)		120-220mm200-330mm200-400mm200-450mm240-460mm280-560mm
80-220mm150-330mm150-400mm150-450mm220-460mm280-560mm
Paper tube length(with handle/outer fold)
                (without handle/inner fold)		190-350mm280-430mm280-550mm280-550mm320-650mm320-650mm
190-430mm280-530mm280-600mm280-600mm320-770mm320-770mm
Bottom width of paper bag50-120mm80-180mm90-200mm90-200mm90-260mm90-260mm
Paper roll width290/370-710mm490/590-1050mm510/610-1230mm510/610-1330mm650/690-1470mm770-1670mm
Machine speed150pcs/min150pcs/min150pcs/min150pcs/min130pcs/min100pcs/min
Total power32kw32kw34kw34kw34kw34kw
Machine weight13000kg16000kg18000kg18000kg21000kg22000kg
Machine dimensions(L×W×H)12×5×3.2m14×6×3.5m15×6×3.5m15×6×3.5m16×6×3.5m16×6×3.5m


Machine

Roll Feed Paper Bag Making Machine Gallery

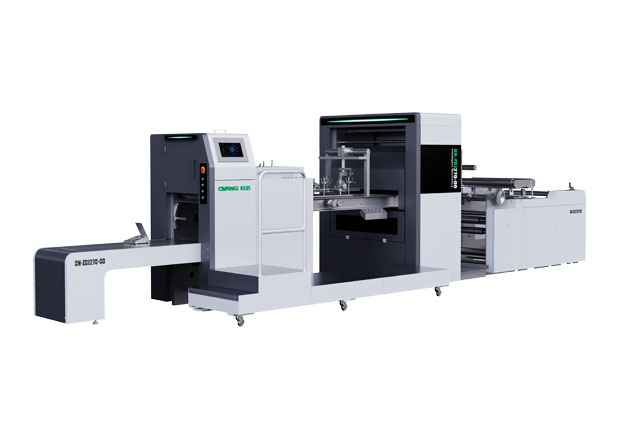

Roll fed paper bag making machine features an automatic tension control and registration system for continuous roll-to-bag conversion with minimal material waste.
