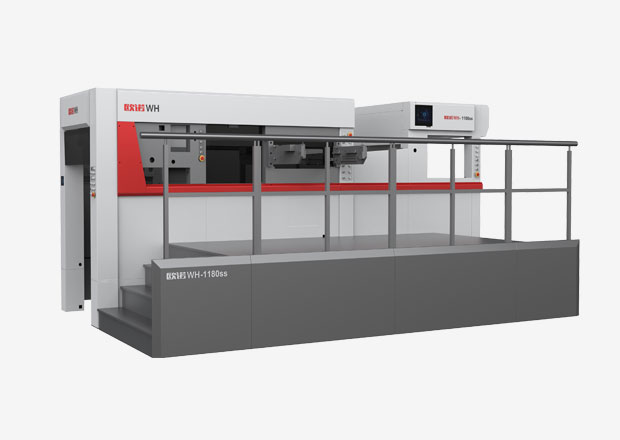

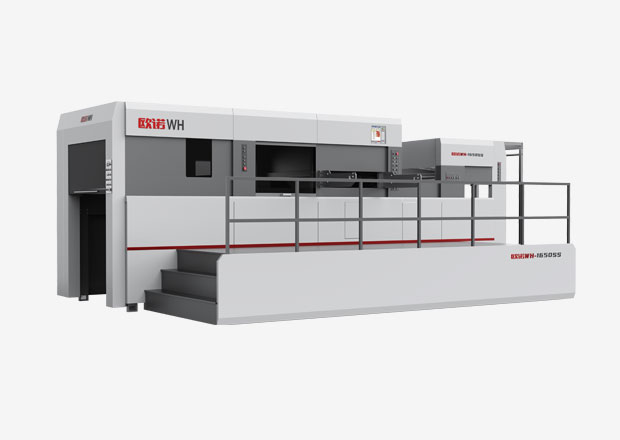

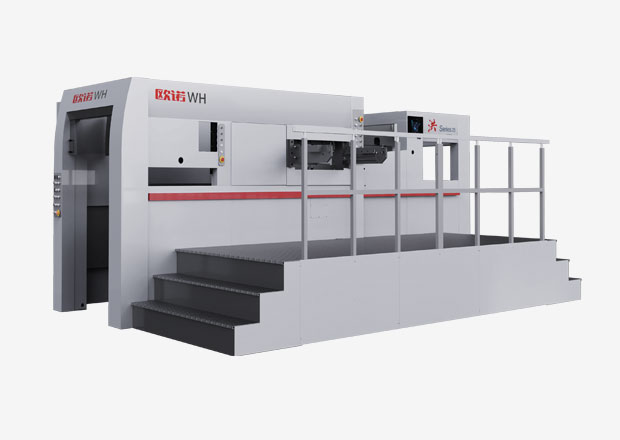

Paper Die Cutting Machine With Clearance

Ounuo's advanced die-cutting machine delivers ultra-precise clearance control, perfect for intricate packaging, labels, and paper crafts. Its patented technology ensures flawless cuts with minimal waste, boosting efficiency. Ideal for high-volume production, it supports diverse materials while maintaining speed and accuracy—revolutionizing precision die-cutting.

Features of Paper Die Cutting Machine With Clearance

1

Advanced Precision Control – Micron-level accuracy for complex designs

2

Multi-Material Compatibility – Handles paper, cardboard, and specialty substrates

3

Patented Waste Reduction – Optimized blade technology minimizes material loss

4

High-Speed Operation – Maintains 6800sheets/hr without compromising quality

5

User-Friendly Interface – Touchscreen controls for easy setup and adjustments

Specifications of Paper Die Cutting Machine With Clearance

Model
WH-1180SS
(Sucker Paper Delivery)		WH-1180SS
(Feida Paper Delivery)		WH-1300SS
(With Stripping)
Paper SizeMax Sheet Size1180×900mm1180×900mm1300×1050mm
Min Sheet Size425×440mm400×360mm435×560mm(leading edge)
425×440mm(sucker)
Process SizeMax.Cutting Size1150×885mm1150×885mm1290×1000mm
MediaFeeding materialsF/E/B/C wall, colour-laminated corrugated borad = 2-4mm100-2000g/㎡ cardboard 0.1-2mm cardboard, F/E/B/C wall, colour-laminated corrugated board = 2-4mmF/E/B/C wall, colour-laminated corrugated borad = 2-6mm
SpeedMaximum mechanical speed6800 Sheets/hr6800 Sheets/hr6000 Sheets/hr
Sheet Edge SizeMin.sheet.edge9.5mm
Print EnvironmentMax working pressure400Ton
Power required24.0kw24.0kw40.0kw(leading edge)
35.0kw(Suck down)
Machine SpecificationMachine Weight20Ton20Ton24Ton
Machine dimension(L*W*H)8.9×4.4×2.4m8.2×4.4×2.4m9.1×4.6×2.5m(Feida)
9.7×4.6×2.5m(Suck down/leading edge)


Machine

Paper Die Cutting Machine With Clearance Gallery

Features precision steel grippers, adaptive side gauges, and high-speed paper handling for continuous, accurate die cutting with minimal downtime.
