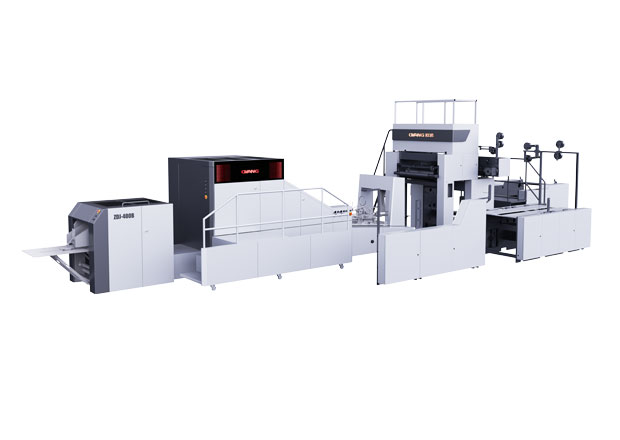

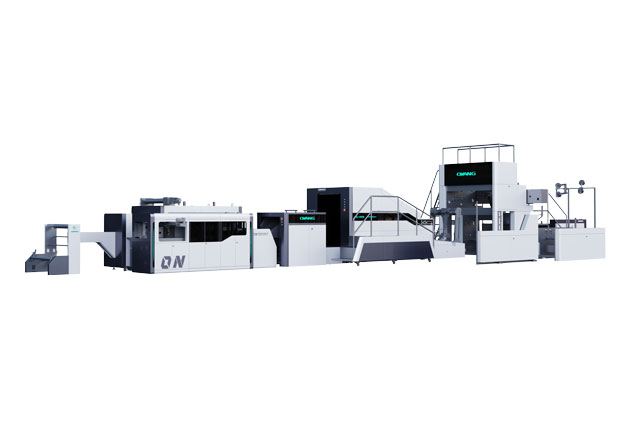

Name: Paper Bag With Handle Making Machine
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Paper Bag With Handle Making Machine

Dual-Handle Options – Produces flat/twisted handles simultaneously

Anti-Rebound Mouth – Heat-sealed top prevents reopening

High-Speed Creasing – 150 bags/minute with perfect folds

Universal Compatibility – Works with recycled/Kraft/coated papers

Specifications of Paper Bag With Handle Making Machine

Model No.	A220	A330	A400	A450	A460	A560
Paper diameter	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm
Core inner diameter	⌀76mm	⌀76mm	⌀76mm	⌀76mm	⌀76mm	⌀76mm
Paper weight	70-140gsm	80-140gsm	80-140gsm	80-140gsm	80-140gsm	90-140gsm
Paper bag width(with handle) (without handle)	120-220mm	200-330mm	200-400mm	200-450mm	240-460mm	280-560mm
Paper bag width(with handle) (without handle)	80-220mm	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper tube length(with handle/outer fold) (without handle/inner fold)	190-350mm	280-430mm	280-550mm	280-550mm	320-650mm	320-650mm
	190-430mm	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Bottom width of paper bag	50-120mm	80-180mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper roll width	290/370-710mm	490/590-1050mm	510/610-1230mm	510/610-1330mm	650/690-1470mm	770-1670mm
Machine speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min	130pcs/min	100pcs/min
Total power	32kw	32kw	34kw	34kw	34kw	34kw
Machine weight	13000kg	16000kg	18000kg	18000kg	21000kg	22000kg
Machine dimensions(L×W×H)	12×5×3.2m	14×6×3.5m	15×6×3.5m	15×6×3.5m	16×6×3.5m	16×6×3.5m

Handle Model No.	2HD	3HD	5HD	6HD
Handle Rope Height	90-110mm	90-110mm	95-115mm	100-120mm
Handle Patch Width	40-50mm	45-50mm	45-50mm	45-50mm
Handle Patch Length	95mm	114mm	152mm	190mm
Handle Rope Diameter	⌀3-5mm	⌀4-6mm	⌀4-6mm	⌀4-6mm
Diameter of Handle Patch Paper Roll	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm
Handle Patch Paper Roll Width	80-100mm	90-100mm	90-100mm	90-100mm
Handle Patch Weight	100-140g	100-140g	100-140g	100-140g
Handle Separation Distance	47mm	57mm	76mm	95mm

Simultaneous handle-patch bonding system integrates handles during bag formation, eliminating secondary processes for 9,000 bags/hour output.


