Name: Paper Bag Making Machine With Twisted Handle
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Paper Bag Making Machine With Twisted Handle

Reinforced Handle Attachment – Twisted paper handles for extra durability

Anti-Slip Coating – Optional food-grade coating for secure grip

High-Tensile Strength – Supports up to 15kg weight capacity

Quick-Change System – Switches handle types in under 3 minutes

Specifications of Paper Bag Making Machine With Twisted Handle

Model No.	A220	A330	A400	A450	A460	A560
Paper diameter	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm
Core inner diameter	⌀76mm	⌀76mm	⌀76mm	⌀76mm	⌀76mm	⌀76mm
Paper weight	70-140gsm	80-140gsm	80-140gsm	80-140gsm	80-140gsm	90-140gsm
Paper bag width(with handle) (without handle)	120-220mm	200-330mm	200-400mm	200-450mm	240-460mm	280-560mm
Paper bag width(with handle) (without handle)	80-220mm	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper tube length(with handle/outer fold) (without handle/inner fold)	190-350mm	280-430mm	280-550mm	280-550mm	320-650mm	320-650mm
	190-430mm	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Bottom width of paper bag	50-120mm	80-180mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper roll width	290/370-710mm	490/590-1050mm	510/610-1230mm	510/610-1330mm	650/690-1470mm	770-1670mm
Machine speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min	130pcs/min	100pcs/min
Total power	32kw	32kw	34kw	34kw	34kw	34kw
Machine weight	13000kg	16000kg	18000kg	18000kg	21000kg	22000kg
Machine dimensions(L×W×H)	12×5×3.2m	14×6×3.5m	15×6×3.5m	15×6×3.5m	16×6×3.5m	16×6×3.5m

Handle Model No.	2HD	3HD	5HD	6HD
Handle Rope Height	90-110mm	90-110mm	95-115mm	100-120mm
Handle Patch Width	40-50mm	45-50mm	45-50mm	45-50mm
Handle Patch Length	95mm	114mm	152mm	190mm
Handle Rope Diameter	⌀3-5mm	⌀4-6mm	⌀4-6mm	⌀4-6mm
Diameter of Handle Patch Paper Roll	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm
Handle Patch Paper Roll Width	80-100mm	90-100mm	90-100mm	90-100mm
Handle Patch Weight	100-140g	100-140g	100-140g	100-140g
Handle Separation Distance	47mm	57mm	76mm	95mm

Machine

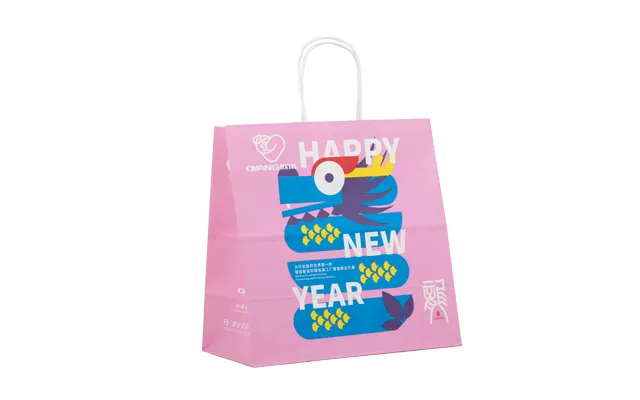

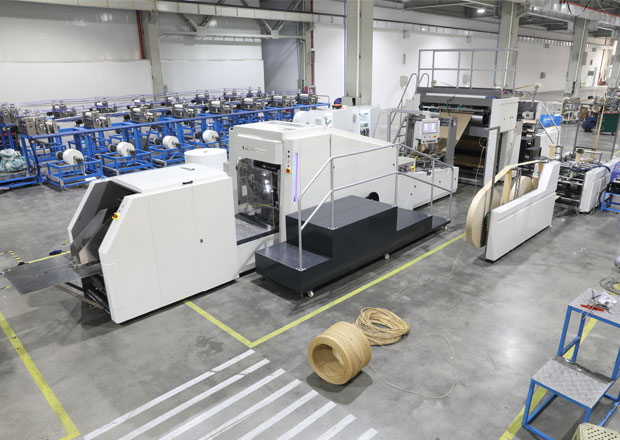

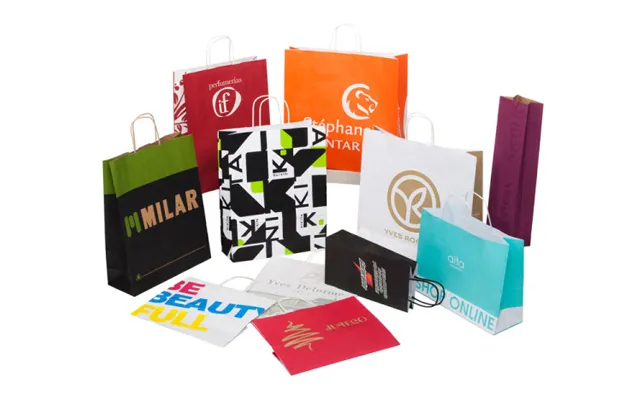

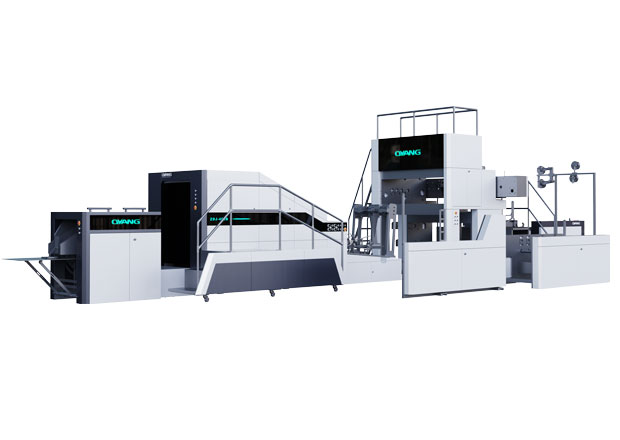

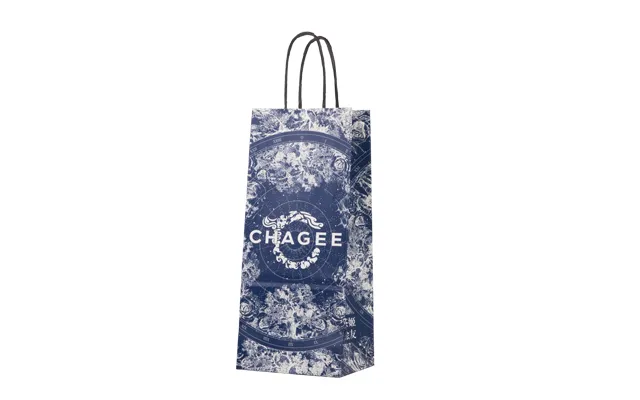

Paper Bag Making Machine With Twisted Handle Gallery

Besides sos paper bag making machine,the paper Bag Making Machine also integrates automatic handle pasting and bag forming, with firm adhesion and synchronized operation for improved appearance and strength.


