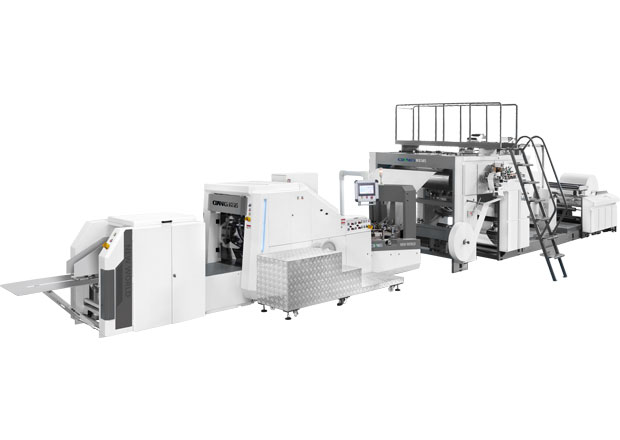

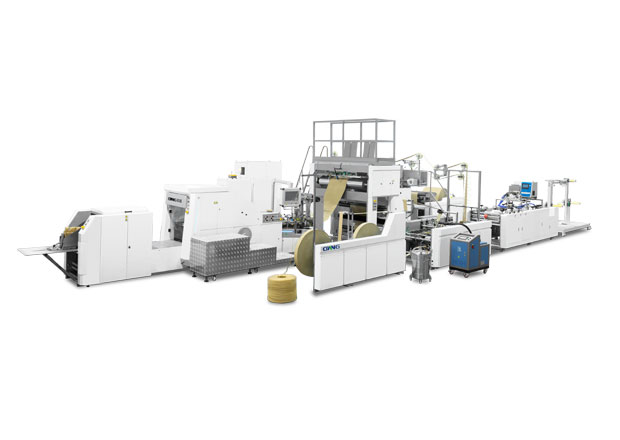

Name: Paper Bag Making Machine With Flat Handle
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Flat-Handle Paper Bag Machine

Smooth Handle Integration – Seamless flat handle bonding

Ergonomic Design – Comfortable grip for heavy loads (20kg+)

Print-Friendly Surface – Preserves artwork on handle areas

Automated Gluing – Precision adhesive application

Specifications of Flat-Handle Paper Bag Machine

Model No.	AS 330	AS 400	AS 450	AS 460	AS 560
Paper diameter	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm
Core inner diameter	⌀76mm	⌀76mm	⌀76mm	⌀76mm	⌀76mm
Paper weight	80-140gsm	80-140gsm	80-140gsm	90-140gsm	90-140gsm
Paper bag width(with handle) (without handle)	200-330mm	200-400mm	200-450mm	220-460mm	280-560mm
Paper bag width(with handle) (without handle)	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper tube length(with handle/outer fold) (without handle/inner fold)	280-430mm	280-550mm	280-550mm	320-670mm	320-670mm
	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Bottom width of paper bag	80-180mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper roll width	490/590-1050mm	510/610-1230mm	510/610-1330mm	650-1470mm	770-1670mm

Flat Handle Rope Height	75mm	75mm	75mm	100mm	100mm
Flat Handle Rope Width	12mm	16mm	16mm	16mm	16mm
Paper Rope Roll Width	85mm	95mm	95mm	95mm	95mm
Paper Rope Roll Diameter	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm
Paper Rope Thickness	70～80g/㎡	70～80g/㎡	70～80g/㎡	80～100g/㎡	80～100g/㎡
Handle Patch Length	160mm	170mm	170mm	170mm	170mm
Handle Patch Width	52mm	52mm	52mm	52mm	52mm
Paper Patch Roll Diameter	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm	⌀1200mm
Paper Patch Roll Width	160mm	170mm	170mm	170mm	170mm
Paper Patch Thickness	80～110g/㎡	80～110g/㎡	80～110g/㎡	80～110g/㎡	80～110g/㎡
Max. Speed	150pcs/min	120pcs/min	120pcs/min	120pcs/min	120pcs/min
Total Power	25kw	29kw	29kw	29kw	29kw
Total Weight	20000kg	22000kg	22000kg	23000kg	24000kg
Overall Dimension(L×W×H)	15×4.5×3.4m	16×5×3.4m	16×5×3.4m	16.5×5.5×3.5m	16.5×5.5×3.5m

Machine

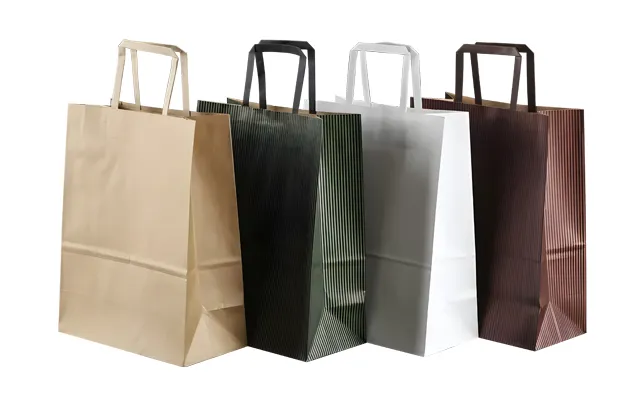

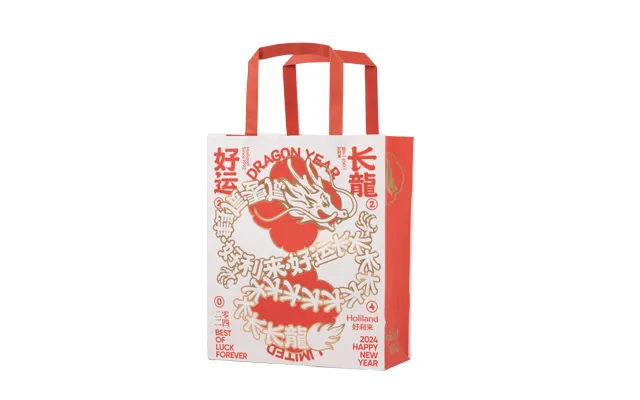

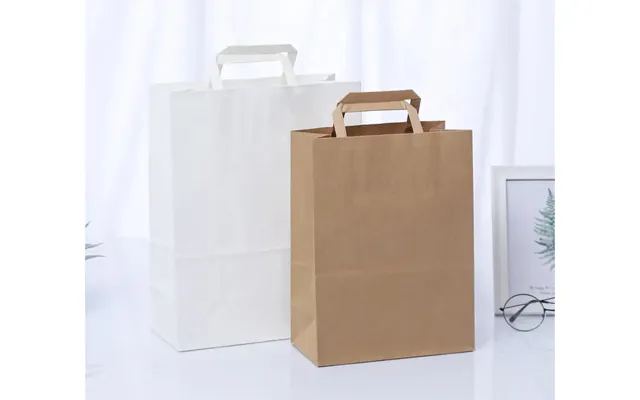

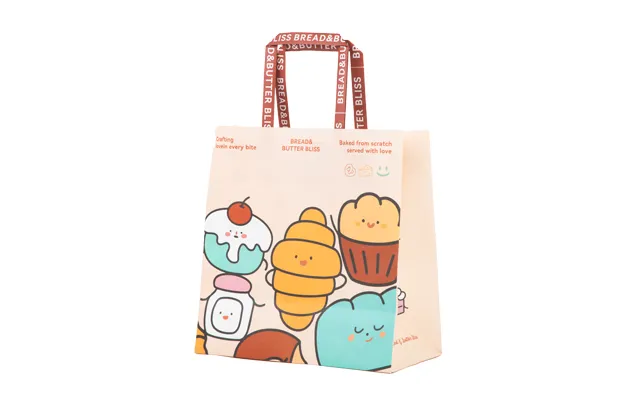

Paper Bag Making Machine With Flat Handle Gallery

Whether it is sos bag machine or a paper bag making machine, all utilize servo control for precise flat handle positioning and bonding, enhancing bag aesthetics and user comfort under load.


