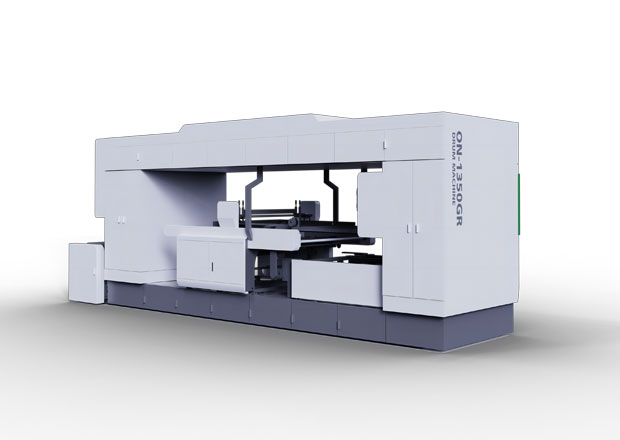

Non Woven Screen Printing Machine

This non woven bag screen printing machine is designed for efficient and precise printing of non-woven materials, suitable for pattern, logo and text printing in environmentally friendly bags, medical supplies, packaging materials and other fields. The equipment adopts high-precision screen printing technology, combined with servo drive system, to ensure accurate printing positioning, full color, support multi-color continuous printing and meet the requirements of complex patterns.

Features of Non Woven Screen Printing Machine

1

Stable and Efficient: automated feeding and receiving systems, combined with intelligent drying devices, improve production speed and consistency.

2

Environmental Protection and Low Consumption: low tension printing design reduces material loss, and optional water-based ink solution meets environmental standards.

Specifications of Non Woven Screen Printing Machine

Model No.12010I12010II
Max. Printing Size1200×1100mm1200×1100mm
Non-woven Fabric Roll Width1250mm1250mm
Non-woven Fabric Thickness45g/㎡-100g/㎡45g/㎡-100g/㎡
Max. Diameter of Rolls900mm800mm
Printing Speed1000-1600m/h500-900m/h
Voltage & Total Power380V 3p4n 42KW380V 3p4n 85KW
Machine Size7300×1800×2200mm15500×1800×2200mm
Basic StructureFeeding Part＋Printing Part
＋Drying Part＋Collecting Part		Feeding Part＋Printing Part
＋Drying Part＋Printing Part
＋Drying Part＋Collecting Part
Weight3500kg6000kg


Machine

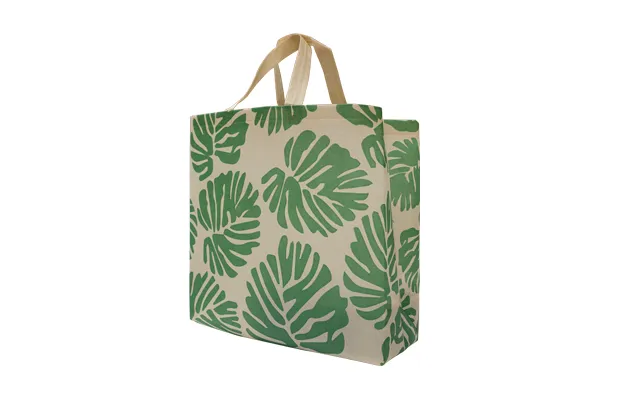

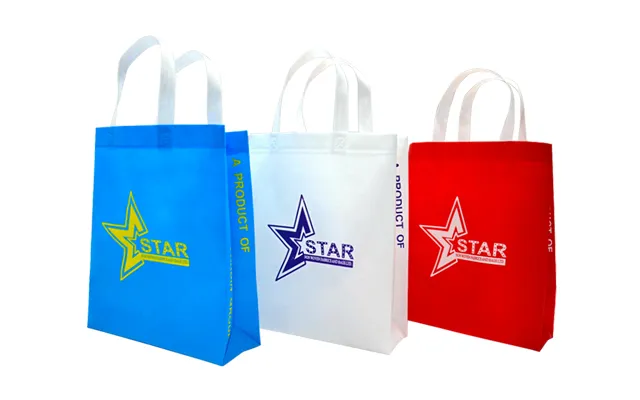

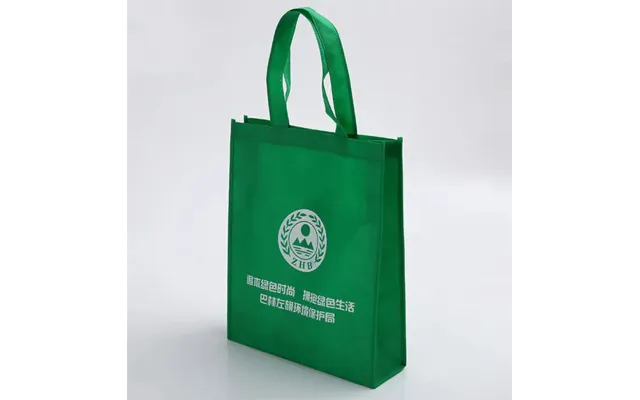

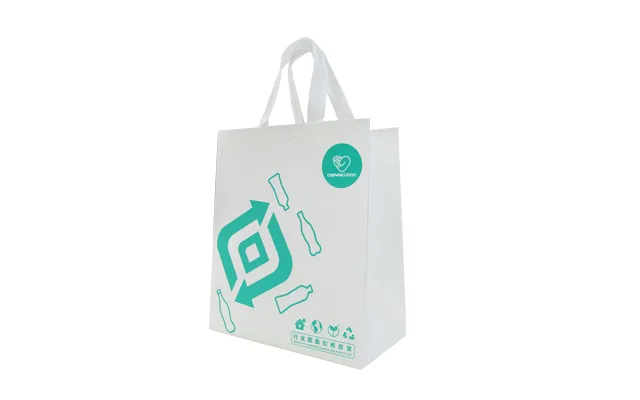

Non Woven Screen Printing Machine Gallery

This machine is suitable for small and medium-sized customized production and is an ideal choice to enhance the added value of non-woven fabric products.

OUNUO Hot Sale Bag Making Machines

Two Color Non Woven Screen Printing Machine
Two Color Non Woven Screen Printing Machine

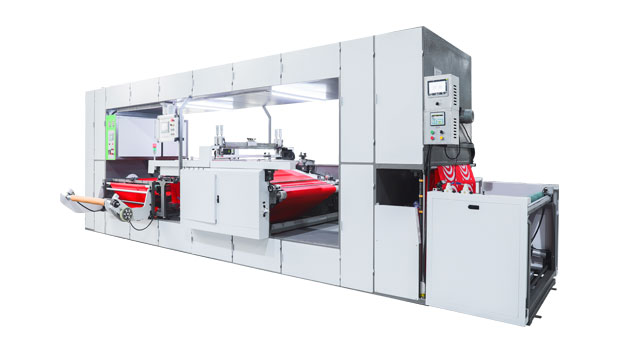

Roll To Roll Screen Printing Machine
