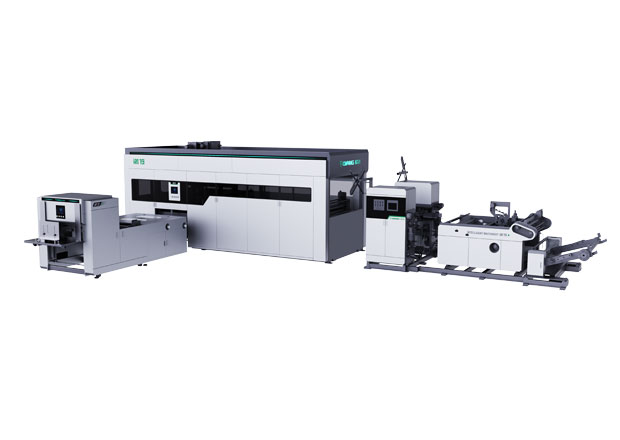

Non Woven Handle Bag Making Machine

Non woven handle making machine is specially developed for efficient molding of peritoneal non-woven fabric and pure non-woven fabric. OUNUO non-woven handle making machine

 adopts advanced one-time molding technology, completely replacing traditional sewing methods. This non woven handle bag making machine can  saves more than 200 people's labor. Non woven bag handle punching machine is equipped with a fast mold changing system, which can complete mold switching within 20 minutes and achieve flexible production of multiple product categories.

Features of Non Woven Handle Bag Making Machine

1

The nonwoven bag machine adopts a high-performance 630 servo drive system, the bag mouth automatically corrects deviation.

2

Non woven bag handle punching machine is equipped with an intermittent adhesive function and an electric punching system, with excellent production efficiency, and a daily output of up to 90000 to 100000 pcs of laminated cooling box bags.

Specifications of Non Woven Handle Bag Making Machine

Model No.
OYANG 19
Size RangeGusset80-220mm
Width100-500mm
Height180-450mm
Handle370-600mm
GSM of nonwoven fabric
70-120g/㎡
nonwoven fabric
70-140g/㎡
laminated nonwoven fabric
Speed
80-100pcs/min
Total PowerRated63KW
Usage46KW
Maximum Air Consumption
1345L/min
Required Air and PowerAir Pressure1.2m³/min, 1.0Mpa
Power380V, 50Hz, 3Phase
Overall Size/Gross WeightOverall Size11240×6372×2562mm
Gross Weight10500KGS


Machine

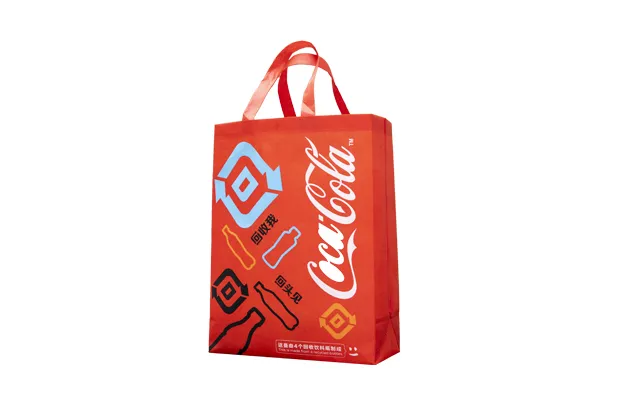

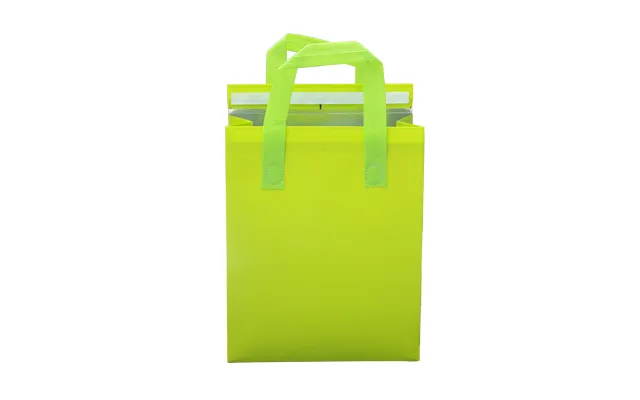

Non Woven Handle Bag Making Machine Gallery

OUNUO non-woven handle making machine is the preferred equipment for upgrading and upgrading in the packaging industry, helping enterprises achieve cost reduction, efficiency improvement and sustainable development!

OUNUO Hot Sale Bag Making Machines

Leader Non Woven Box Bag Making Machine
Leader Non Woven Box Bag Making Machine

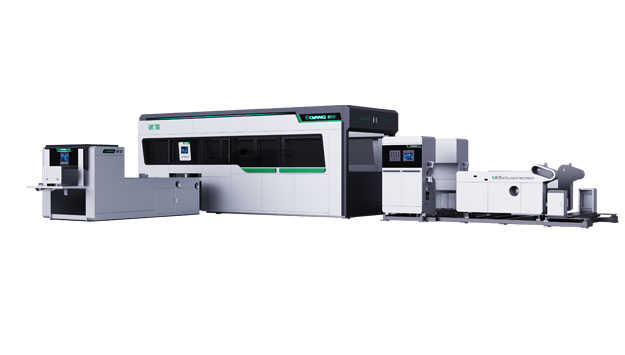

Non Woven Leader Bag Making Machine
