Name: Non Woven Box Bag Making Machine
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Non Woven Box Bag Making Machine

Efficient and Intelligent: equipped with functions such as one click mold change, intelligent detection and automatic waste kicking, the daily production capacity of a single machine can reach 120000 units.

Precise Control: using servo drive system to ensure accurate molding dimensions to ± 0.5mm.

Widely Applicable: non woven bags machine supports various environmentally friendly materials such as PP non-woven fabric and composite coating materials.

Specifications of Non Woven Box Bag Making Machine

Model No.		TECH 26
Size Range	Gusset	80-200mm
	Width	100-400mm
	Height	180-390mm
	Handle	370-600mm
GSM of nonwoven fabric		70-120g/㎡ nonwoven fabric
		70-120g/㎡ nonwoven fabric
		70-140g/㎡ laminated nonwoven fabric
		70-140g/㎡ laminated nonwoven fabric
Speed		90-100pcs/min
Total Power	Rated	135KW
Total Power	Usage	75KW
Maximum Air Consumption		1678L/min
Required Air Consumption	Air Pressure	1.2m³/min, 1.0Mpa
Required Air Consumption	Power	380V, 50Hz, 3Phase
Overall Size/Gross Weight	Overall Size	11975×7347×2797mm
Overall Size/Gross Weight	Gross Weight	14000KGS

Machine

Non Woven Box Bag Making Machine Gallery

This series of equipment represents the advanced level of non-woven bag making technology, and is particularly suitable for large packaging enterprises to build modern intelligent production lines, helping them achieve efficient, energy-saving, and environmentally friendly large-scale production.



OUNUO Hot Sale Bag Making Machines

Non Woven Handle Bag Making Machine

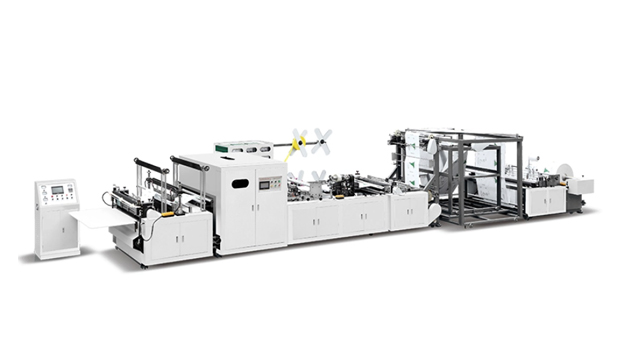

T Shirt Bag Making Machine

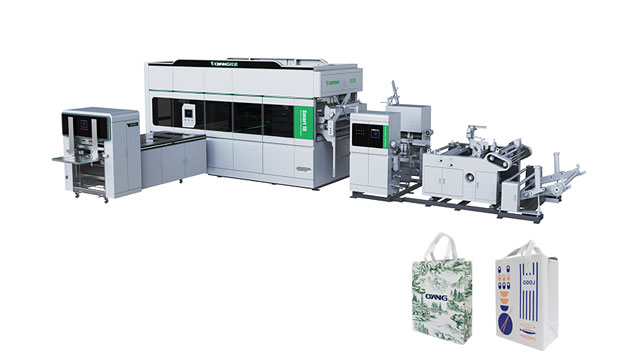

Leader Non Woven Box Bag Making Machine
