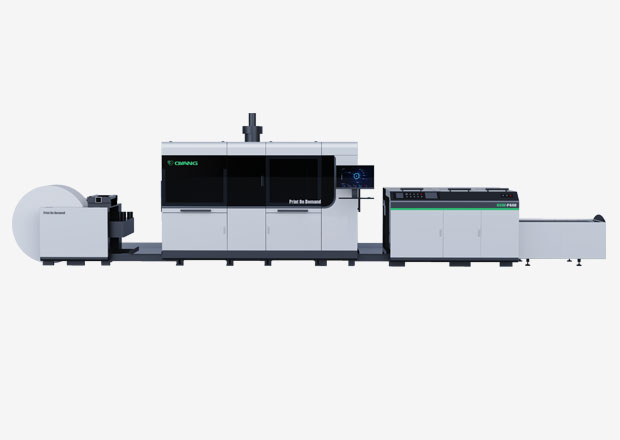

Name: Digital Magazine Printer Machine
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Digital Magazine Printing Machine

Vibrant Color Reproduction

The printing machine for magazines delivers exceptional print quality with high-resolution output, ensuring crisp text and vivid, lifelike images. It’s designed to meet the demanding standards of professional magazine printing, making every page stand out with rich color depth.

Short-Run Efficiency

This magazine printer machine is ideal for short-run and on-demand printing. With minimal setup time and fast turnaround, it allows publishers and print shops to produce limited editions or sample runs efficiently without compromising quality.

Eco-Friendly Operation

Built with sustainability in mind, the machine minimizes ink waste and operates with energy-efficient systems. This makes it a responsible choice for environmentally conscious businesses focused on greener printing solutions.

User-Friendly Interface

The advanced control system offers an intuitive interface for seamless operation. Even beginners can easily manage print settings, monitor production, and achieve consistent results with minimal supervision.

Wide Media Compatibility

Designed for versatility, the magazine printer machine supports various paper types and weights. Whether you’re printing glossy magazines, catalogs, or promotional materials, it ensures reliable performance and excellent print consistency.

Specifications of Magazine Digital Printing Machine

Mold		BSW-P440HD
Maximum Printing width		430mm
Printing method		CMYK Color double-sided inkjet printing
Front and back overprint accuracy		±0.2mm
Max Speed		100M/Min(CMYK Mode)
Nuzzle		1200dpi Industrial HD Inkjet Nozzle(EPSON I3200A1HD）
Ink		Pigment Inkjet Ink
Ink Color		CMYK
Operation Mode		Intelligent operation interface
Production software		Standard configuration
Rip Software		Standard configuration
Typesetting software		Intelligent composition software
Color management methods		ICC Color International Standard
Color Control Engine		Based on the Harlequin kernel
Text Process		Processing Text Based on Word Library
Feed mode		Roll Material
Maximum Roll Diameter		1200mm
Width Range Paper roll		75～440mm
Tension control		Automatic constant tension control
Paper type		wood free paper, E-paper
Paper weight		50-120gsm
Other functions		Pre coating, constant tension, deviation correction, double-sided tracking, paper buffering, etc.
Cutting unit	Cut method	Spine cutting, Single sheet cutting
	Stacking method	Separate stacks for each volume
	Paper stack width	440mm
	Paper pile length	590mm
Transmission assistance system	Ink level detection	Real time monitoring, ink shortage alarm
	Ink supply method	Intelligent constant pressure ink supply
	Drying method	IR drying hot air drying (temperature automatically adjusts with speed)
Environment	Printing host	Three phase five wire 380V, 22KW (full load power)
	Drying system	380V, 30KW
	Temperature	25℃±3℃ Optimal working humidity 55% RH range 40% -70% RH
	Humidity
	Equipment size	8159mm×2260mm×2600mm
	Overall weight	5T
Note:		Changing configurations to improve printing speed may result in loss of printing accuracy
		Common dual color is K+C K+R, and spot color ink can be customized
		Customizable according to user needs, final size follows configuration size

Machine

Digital Magazine Printing Machine Gallery

Revolutionary magazine printing with instant drying technology, seamless duplex registration, and adaptive paper handling for flawless finishes across all paper weights and textures.


