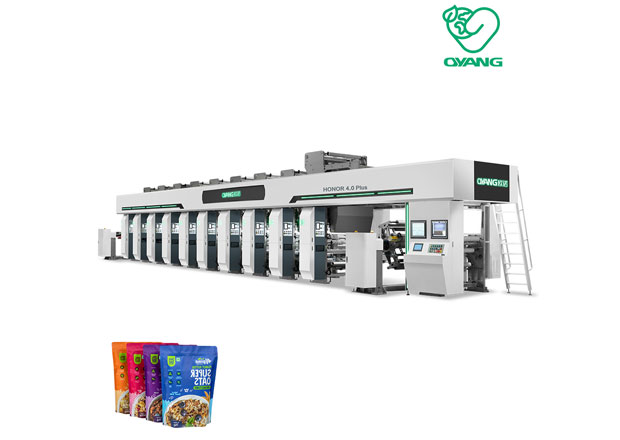

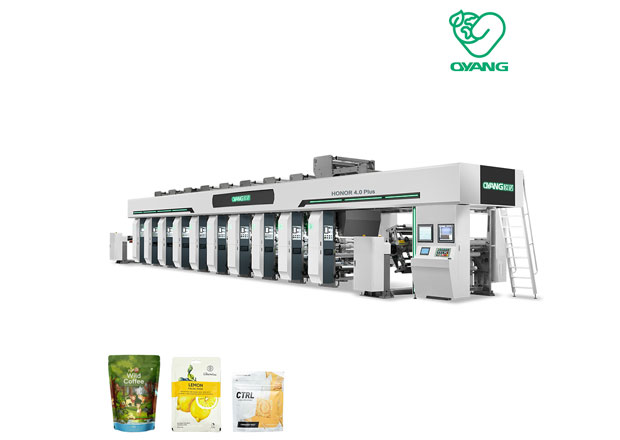

Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine

As the industry benchmark, OUNUO's Honor 4.0 series redefines gravure productivity with revolutionary 450m/min speeds and servo-driven precision. Our patented ELS synchronization delivers ≤0.03mm registration accuracy for ultra-high-volume flexible packaging. Featuring AI-powered predictive maintenance and autonomous ink control, we set new standards in pharmaceutical and barrier film printing.

Features of Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine

1

Industry-Leading Speed

Achieves 450m/min with ≤0.03mm registration accuracy - the fastest precision in flexible packaging printing.

2

Smart Servo Technology

Autonomous AI-driven ink system maintains ±0.5ΔE color variance at full production speed.

3

Zero-Downtime Operation

Predictive maintenance sensors reduce unplanned stops by 80% with real-time component health monitoring.

4

Energy-Efficient Performance

Regenerative servo drives cut power consumption 30% versus conventional systems.

Specifications of Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine

Printing color number10 colors(Increase or decrease)
Maximum printing width1250 mm
Maximum machine speed400 m/min(Standard plate roll diameter Φ170)
Roll diameter rangeΦ120mm-Φ300mm
Roll length range900 mm -1350mm
Alignment accuracy≤±0.1mm(automatic)
Maximum diameter of unwindingΦ800mm
Maximum diameter of windingΦ800mm
Receiving and discharging paper coreΦ76mm×Φ92mm(3")
Tension range3-30KgF
Tension accuracy≤±0.3 KgF(Full amplitude accuracy)
Heating modeElectric heating/steam/natural gas/hot oil, etc.
Heating temperatureMax. 80ºC (indoor temperature 20º)
Temperature control accuracy±2ºC
Total machine powerApprox.175Kw
Machine dimensionsApprox.L.24100 * W.4900 * H.4380(mm)
Machine weightApprox.82000kg
Printing materialPP, BOPP, CPP, PE, PET, PVC, NY etc.


Machine

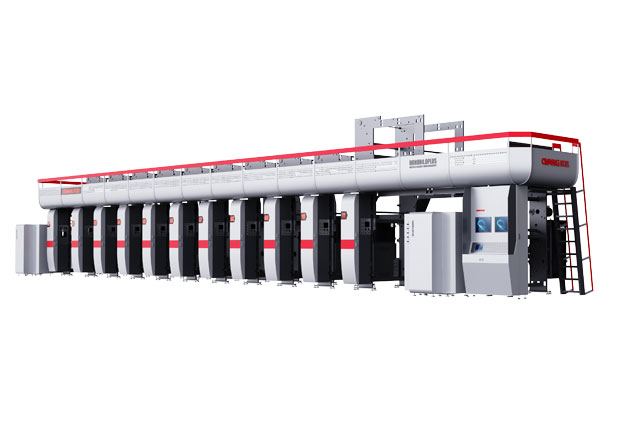

Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine Gallery

OUNUO's Honor 4.0 maintains ≤0.02mm registration at 450m/min through AI-driven servo correction - setting the new industry benchmark.
