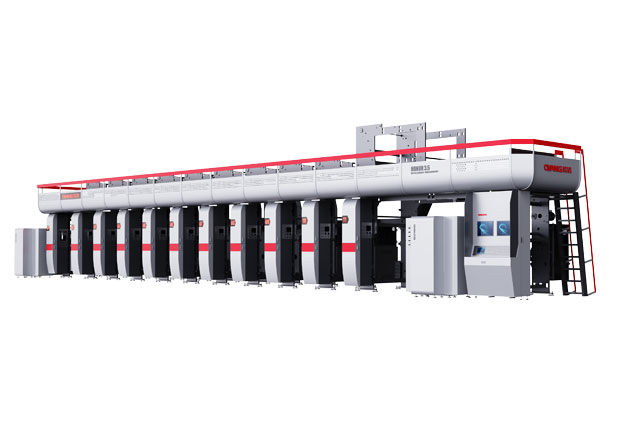

Honor 3.5 Els 350m/Min Water Base Ink Rotogravure Printing Machine

As the industry's water-based ink pioneer, OUNUO delivers the Honor 3.5 series - the world's fastest 350m/min water-based gravure press for sustainable flexible packaging. Our patented ELS synchronization and nano-coated cylinders achieve photorealistic prints at breakthrough speeds while reducing VOC emissions to 5ppm. FDA-compliant for direct-food-contact packaging.

Features of Honor 3.5 Els 350m/Min Water Base Ink Rotogravure Printing Machine

1

Record-Breaking Eco-Speed

Achieves 350m/min with ≤0.04mm registration - the world's fastest water-based printing solution.

2

Zero-VOC Performance

Patented nano-drying system reduces emissions to <5ppm while maintaining 98% ink transfer rate.

3

Food-Safe Precision

FDA-compliant water inks deliver photorealistic graphics for direct-food-contact packaging.

4

Food-Safe Precision

FDA-compliant water inks deliver photorealistic graphics for direct-food-contact packaging.

Specifications of Honor 3.5 Els 350m/Min Water Base Ink Rotogravure Printing Machine

Printing color number10 colors(Increase or decrease)
Maximum printing width1250 mm
Maximum machine speed400 m/min(Standard plate roll diameter Φ170)
Roll diameter rangeΦ120mm-Φ300mm
Roll length range900 mm -1350mm
Alignment accuracy≤±0.1mm(automatic)
Maximum diameter of unwindingΦ800mm
Maximum diameter of windingΦ800mm
Receiving and discharging paper coreΦ76mm×Φ92mm(3")
Tension range3-30KgF
Tension accuracy≤±0.3 KgF(Full amplitude accuracy)
Heating modeElectric heating/steam/natural gas/hot oil, etc.
Heating temperatureMax.80ºC(indoor temperature 20ºC)
Temperature control accuracy±2ºC
Total machine powerApprox.175Kw
Machine dimensionsApprox.L.23400 * W.4756 * H.4378(mm)
Machine weightApprox.72000kg
Printing materialOPP, BOPP, CPP, PE, PET, PVC, NY etc.
Heat Sealing MethodMechanical Press Seal
Total Power123kW
Electrical Source4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-28500 * W-5000 * H-2100(mm)
WeightApprox.72000kg
Printing materialPP, BOPP, CPP, PE, PET, PVC, NY etc.


Machine

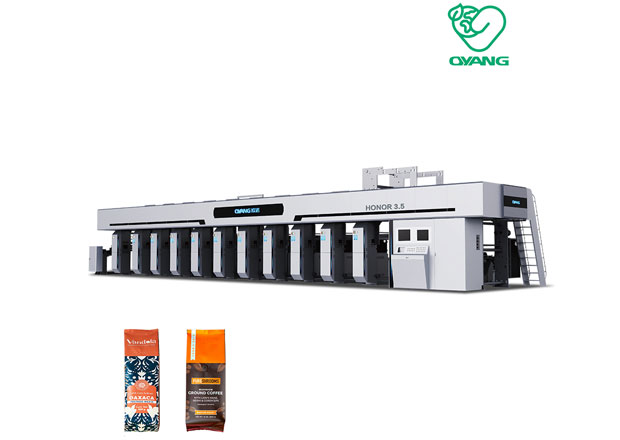

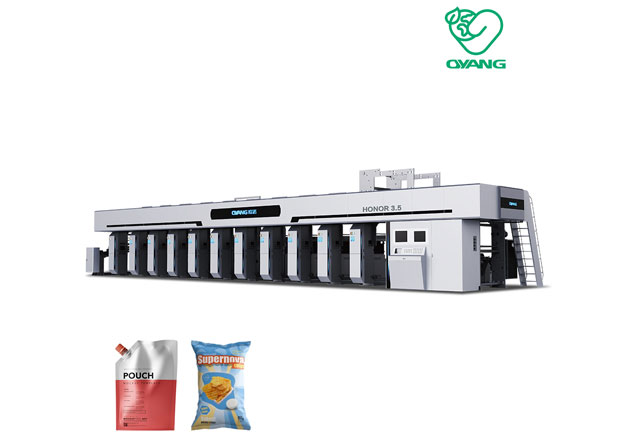

Honor 3.5 Els 350m/Min Water Base Ink Rotogravure Printing Machine Gallery

OUNUO's Honor 3.5 achieves food-safe <3ppm VOC emissions at 350m/min - the industry's cleanest high-speed water-based printing.
