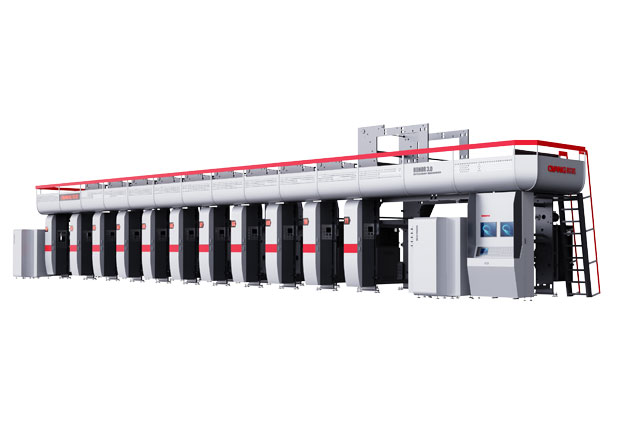

Honor 3.0 Els 250m/Min Aluminum Foil Rotogravure Printing Machine

As a pioneer in premium packaging printing, OUNUO's Honor 3.0 series redefines aluminum foil printing with industry-leading 250m/min speeds and ≤0.03mm registration accuracy. Our patented ELS system and AI-powered color control deliver flawless metallized effects on pharmaceutical/aluminum foil laminates. Featuring automated ink viscosity control and predictive maintenance, we set new benchmarks for high-value flexible packaging.

Features of Honor 3.0 Els 250m/Min Aluminum Foil Rotogravure Printing Machine

1

Breakthrough Production Speed

Achieves 250m/min with ≤0.03mm registration accuracy - the industry's fastest precision for foil printing.

2

Pharmaceutical-Grade Printing

AI-driven color control ensures ±0.5ΔE consistency on sensitive aluminum foil laminates.

3

Sustainable High-Speed Operation

Integrated solvent recovery system reduces VOC emissions by 65% at maximum speed.

4

Zero-Defect Assurance

Laser inspection system detects 40μm print defects with automatic rejection.

Specifications of Honor 3.0 Els 250m/Min Aluminum Foil Rotogravure Printing Machine

Printing color number10 colors(Increase or decrease)
Maximum printing width1250 mm
Maximum machine speed300 m/min(Standard plate roll diameter Φ170)
Roll diameter rangeΦ120mm-Φ300mm
Roll length range900 mm -1350mm
Alignment accuracy≤±0.1mm(automatic)
Maximum diameter of unwindingΦ800mm
Maximum diameter of windingΦ800mm
Receiving and discharging paper coreΦ76mm×Φ92mm(3")
Tension range3-30KgF
Tension accuracy≤±0.3 KgF(Full amplitude accuracy)
Heating modeElectric heating/steam/natural gas/hot oil, etc
Heating temperatureMax. 80ºC (indoor temperature 20º)
Temperature control accuracy±2ºC
Total machine powerApprox.175Kw
Machine dimensionsApprox.L.23100 * W.4850 * H.3900(mm)
Machine weightApprox.55000kg
Printing materialPP, BOPP, CPP, PE, PET, PVC, NY etc


Machine

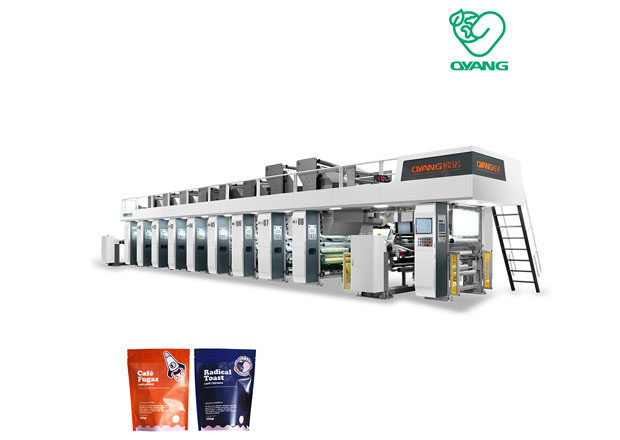

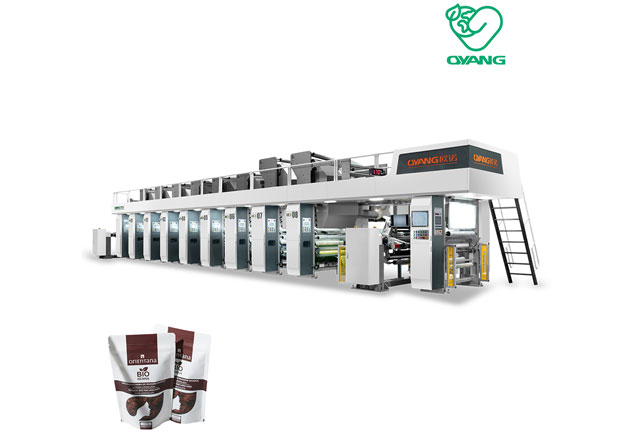

Honor 3.0 Els 250m/Min Aluminum Foil Rotogravure Printing Machine Gallery

OUNUO's Honor 3.0 achieves ≤0.02mm print registration on aluminum foil - meeting strictest cGMP standards for blister packaging.

OUNUO Hot Sale Bag Making Machines

Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine
Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine

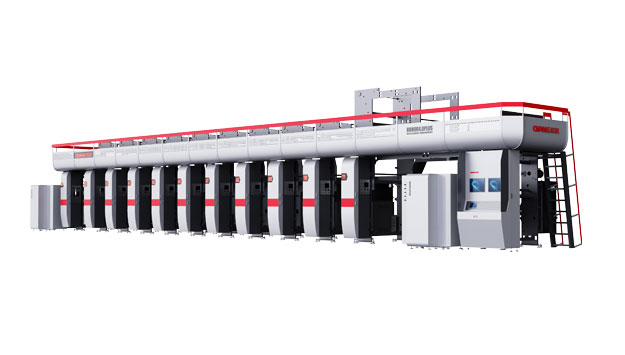

Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine
Honor 4.0 Els 450m/Min Servo Motor Drive Rotogravure Printing Machine

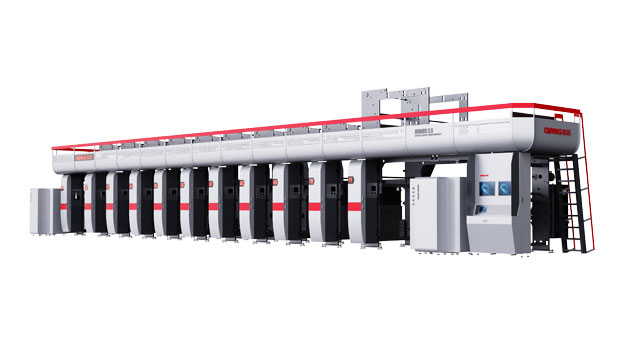

Honor 3.5 Els 350m/Min Water Base Ink Rotogravure Printing Machine
