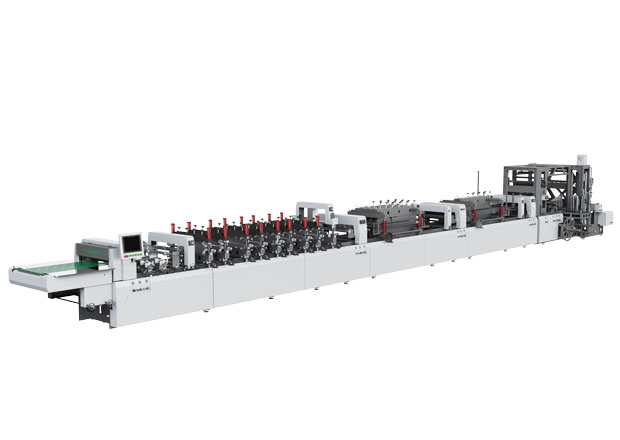

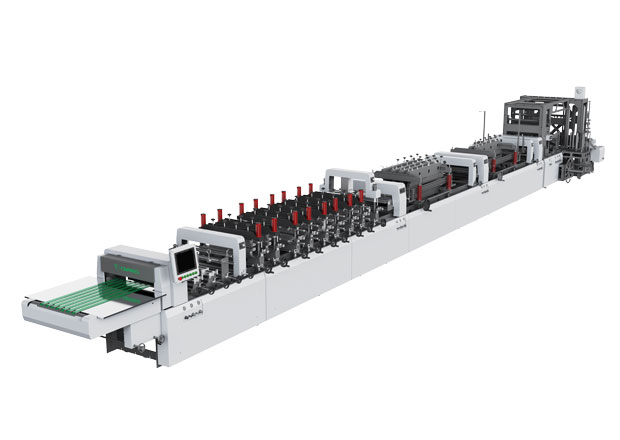

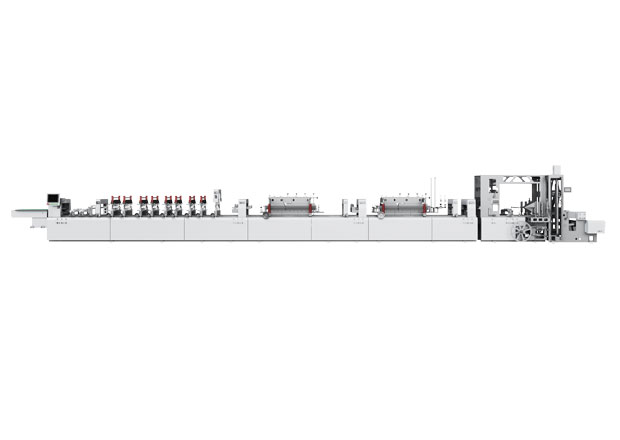

High Speed Standing Pouch With Zipper Making Machine

As an industry pioneer, OUNUO delivers cutting-edge stand-up zipper pouch machines for premium food, pet care, and household products. Our servo-driven system achieves 80-120 pouches/minute with ≤0.1mm zipper alignment precision and airtight bottom seals. Featuring automatic gusset forming and IoT quality monitoring, we ensure shelf-ready packaging with reclosable convenience.

Features of High Speed Standing Pouch With Zipper Making Machine

1

Precision Zipper Application

Achieves ≤0.08mm zipper alignment accuracy with laser-guided positioning for perfect reclosable functionality.

2

High-Speed Production

Servo-driven system delivers 80-120 stand-up pouches/minute with reinforced gussets.

3

Intelligent Quality Control

Integrated vision system detects and rejects defective zippers or seals in real-time.

4

Premium Material Handling

Processes 4-8 layer barrier films including recyclable and compostable options.

Specifications of High Speed Standing Pouch With Zipper Making Machine

Available Pouch TypesCenter seal pouch/center seal with gusset pouch/ 4 side seal with gusset pouch/ side enter seal with gusset pouch, etc.
Maximum Pouch Making ShotMax 240 Pcs/min(about 50m/min)
Pouch Making CapacityDepends on film material and thickness.
Applicable MaterialPE/PE, Laminated films, OPP, BOPP, PET, PE, CPP, etc.
Material Thickness100-230um
Body Film Web Width, Max.1300mm
Body Film Web Dia, Max.Φ800mm
Paper Core Dia, Max.3 inch
Pouch Making Width:
①. Center seal flat pouch
     200-640mm
②. Center seal with gusset

L=30-160mm (gusset folded)   2L=200-640mm		Pouch Making Length:
Pouch making length: 100—420mm (More than 420mm adopts multipled feed)
Gusset Folding LengthL=30-160mm
2L=200-640mm
Positioning Accuracy≤ ±1mm
Heat Sealing MethodMechanical Press Seal
Total Power123kW
Electrical Source4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-28500 * W-5000 * H-2100(mm)
Weight13000kg


Machine

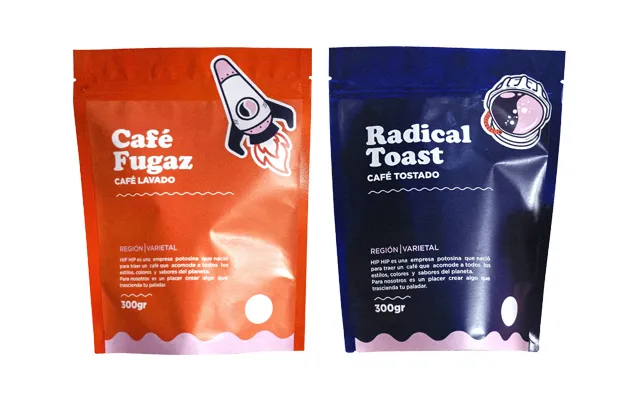

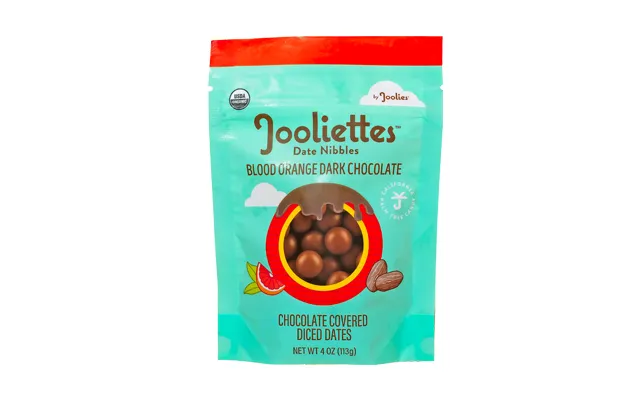

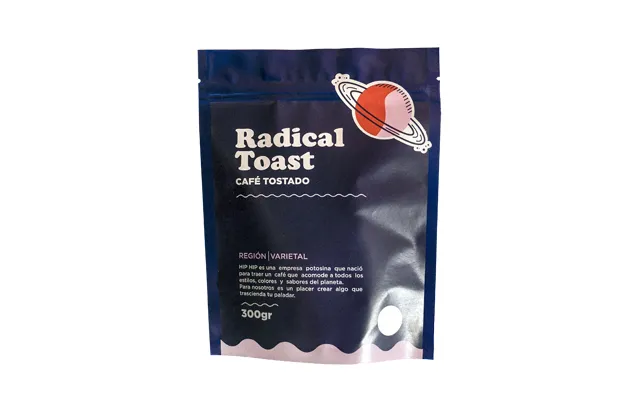

High Speed Standing Pouch With Zipper Making Machine Gallery

OUNUO's system achieves ≤0.05mm hermetic seals with pressure-test certification, ensuring 100% leak-proof performance for liquid products.
