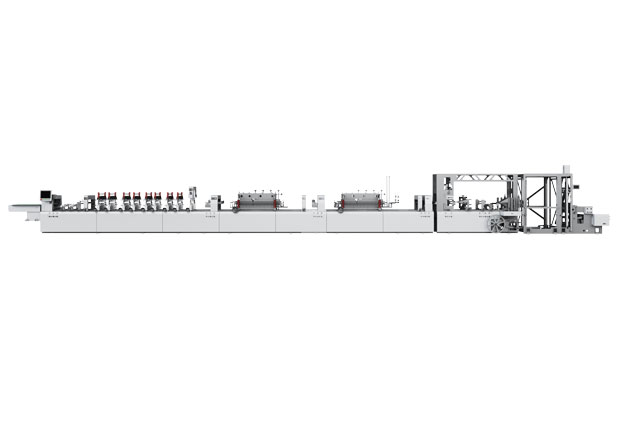

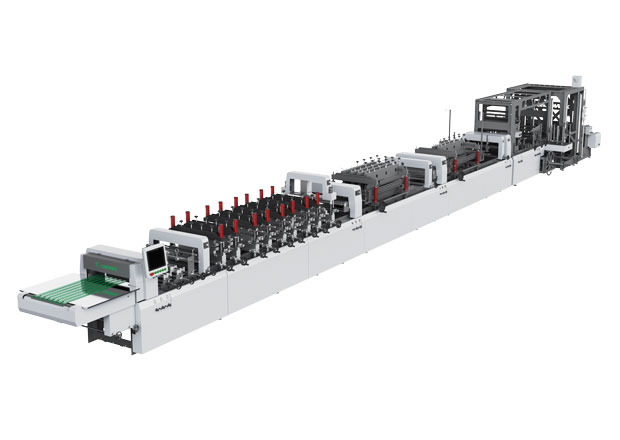

Name: High Speed Multifunctional Pouch Making Machine
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of High Speed Multifunctional Pouch Making Machine

All-in-One Versatility

Produces stand-up, flat, zipper, and spout pouches in one machine with quick-change tooling.

Ultra-High Speed

Servo-driven system delivers 100-150 pouches/minute with ≤0.1mm precision.

Intelligent Operation

IoT-enabled monitoring and AI vision inspection ensure 99.9% defect-free output.

Material Adaptability

Handles 3-8 layer films including recyclable and barrier materials.

Specifications of High Speed Multifunctional Pouch Making Machine

Machine Type	Multi-functional stand-up & three side seal pouch making machine
Available Pouch Types	Stand up /3 side seal pouch with or without zipper
Maximum Pouch Making Shot	240CPM (3 side seal, 45m/min )
	200CPM(3 side seal with zipper, 30m/min)
	150CPM(stand up pouch with zipper, 30m/min)
*Pouch Making Capacity	Depends on film material and thickness.
Applicable Material	PE/PE, Laminated films,
Applicable Material	OPP, BOPP, PET, PE, CPP, etc.
Material Thickness	70-230um
Body Film Web Width, Max.	1300mm
Body Film Web Dia, Max.	Φ800mm
Gusset Film web Width, Max.	400mm
Gusset Film web Dia, Max.	Φ800mm
Paper Core Dia, Max.	3 inch
Pouch Making Length, Max: ①. Stand Up Pouch Single Lane: 650mm-L Double Lane:325mm-L Gusset Bottom: 40-200mm-L ②. 3 side seal pouch Single Lane: 650mm-L Double Lane:325mm-L	Pouch Making Width, Max: ①. Stand Up Pouch 420mm-W ②. 3 side seal pouch 420mm-W
Positioning Accuracy	≤ ±1mm
Heat Sealing Method	Mechanical Press Seal
Total Power	95kW
Electrical Source	4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine Color	Body Black Phosphating, Stainless Steel Safety Shield
Size	L-20000 * W-4000 * H-2100(mm)
Weight	10000kg

OUNUO's multifunctional machine produces 8+ pouch types in one system with <3-minute changeovers, maximizing production flexibility.
