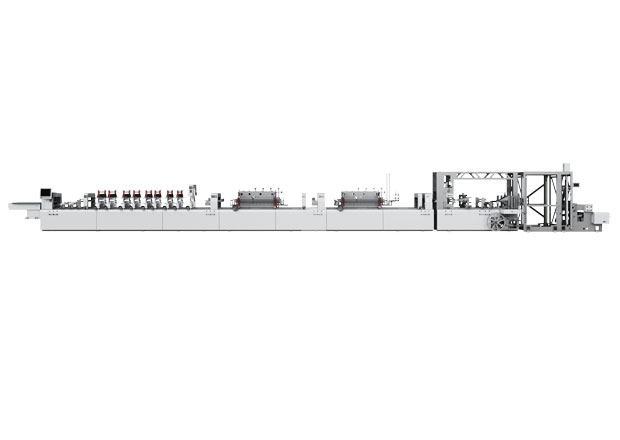

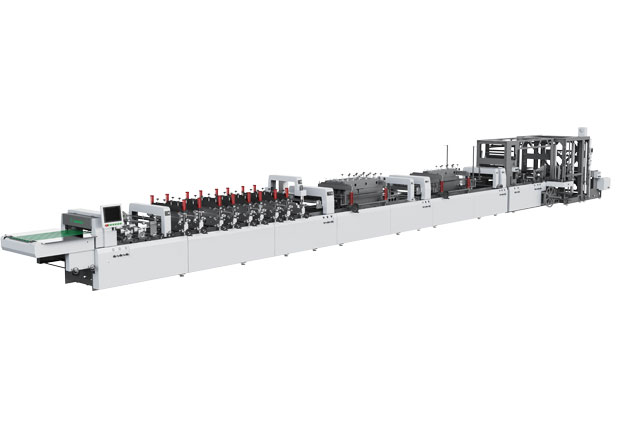

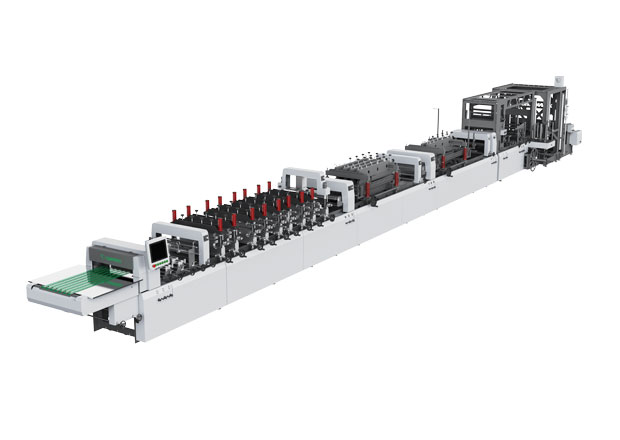

Name: Flat Bottom Pouch Making Machine
Brand: ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
Availability: InStock

Features of Flat Bottom Pouch Making Machine

Precision Bottom Sealing

Achieves ≤0.15mm seal accuracy with reinforced gussets for superior pouch stability.

High-Speed Production

Servo-driven system delivers 50-80 stand-up pouches/minute.

Smart Operation

Integrated sensors monitor and adjust folding parameters in real-time.

Material Versatility

Handles various multi-layer films including aluminum and recyclable materials.

Specifications of Flat Bottom Pouch Making Machine

Available Pouch Types	Flat bottom (8 side seal) /4 side seal
Available Pouch Types	pouch with or without zipper
Maximum Pouch Making Shot	200CPM 50m/min(mechanical speed)
	120CPM(flat bottom pouch with zipper)
	150CPM(4 side seal pouch with zipper)
Pouch Making Capacity	Depends on film material and thickness.
Applicable Material	PE/PE, Laminated films,
Applicable Material	OPP, BOPP, PET, PE, CPP, etc.
Material Thickness	70-230um
Body Film Web Width, Max.	1300mm
Body Film Web Dia, Max.	Φ800mm
Gusset Film web width, Max.	400mm
Gusset Film web Dia, Max.	Φ800mm
Paper Core Dia,Max.	3 inch
Pouch Making Length, Max: ①. Flat Bottom Pouch Single Lane: 650mm-L Double Lane: 325mm-L ②. 4 side seal pouch Single Lane: 500mm-L Double Lane: 250mm-L	Pouch Making Width, Max: ①. Flat Bottom Pouch 420mm-W ②. 4 side seal pouch 420mm-W
Gusset Folding Length	L=30-200mm
Double &Four Lane for flat bottom pouch making with welded zipper seal need to add inserted bottom gusset device and pper Film Slitting Device
Positioning Accuracy	≤ ±1mm
Heat Sealing Method	Mechanical Press Seal
Total Power	123kW
Electrical Source	4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine Color	Body Black Phosphating, Stainless Steel Safety Shield
Size	L-28500 * W-5000 * H-2100(mm)
Weight	13000kg

OUNUO's machine achieves ≤0.1mm bottom seal precision with automatic pressure adjustment for 100% leak-proof performance.
