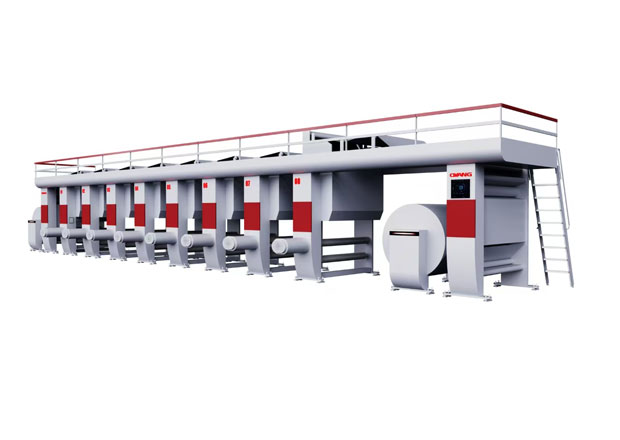

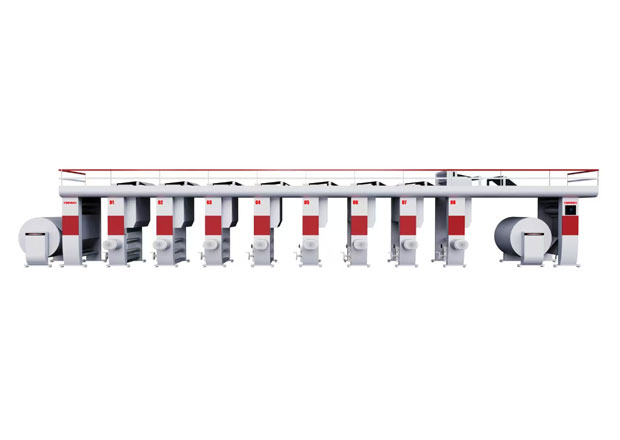

Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine

As an innovator in flexographic printing, OUNUO delivers the advanced Colour 3.0 series with 180m/min speeds for high-volume film production. Our servo-driven ELS system ensures ≤0.05mm registration accuracy across 8-10 colors, handling BOPP/CPP/PET films with vibrant CMYK+ specialty inks. Featuring AI color control and predictive maintenance, we redefine efficiency for food and pharma packaging.

Features of Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine

1

Ultra-High Speed Precision

Achieves 180m/min with ≤0.05mm registration accuracy through servo-driven ELS synchronization.

2

Advanced Color Management

10-color configuration with AI-driven ink viscosity control for Pantone-matched consistency.

3

Smart Production

IoT-enabled predictive maintenance reduces downtime by 40% with real-time defect detection.

4

Material Versatility

Handles 12-60μ BOPP/CPP/PET films including sustainable and barrier coatings.

Specifications of Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine

Printing color number10 colors(Increase or decrease)
Maximum printing width1100 mm
Maximum machine speed180 m/min(Standard plate roll diameter Φ170)
Roll diameter rangeΦ90mm-Φ290mm
Roll length range600 mm -1150mm
Alignment accuracy≤±0.1mm(automatic)
Maximum diameter of unwindingΦ600mm
Maximum diameter of windingΦ600mm
Receiving and discharging paper coreΦ76mm×Φ96mm(3")
Tension range3-30KgF
Tension accuracy≤±0.3 KgF(Full amplitude accuracy)
Heating modeElectric heating/steam/natural gas/hot oil, etc
Heating temperatureMax.80ºC (indoor temperature 20º)
Temperature control accuracy±2ºC
Total machine powerApprox.175Kw
Machine dimensionsApprox.L.18900 * W.4500 * H.3150(mm)
Machine weightApprox.36000kg
Printing materialPP, BOPP, CPP, PE, PET, PVC, NY etc.


Machine

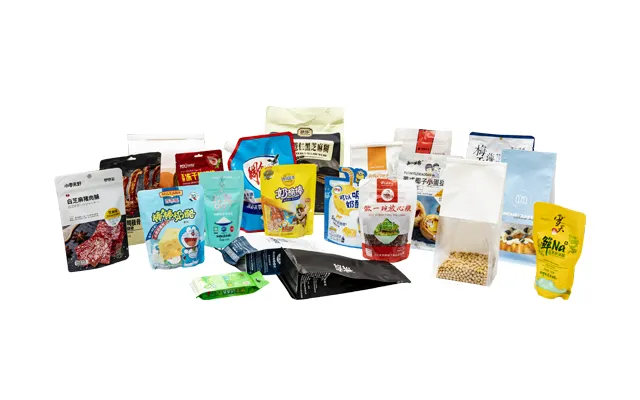

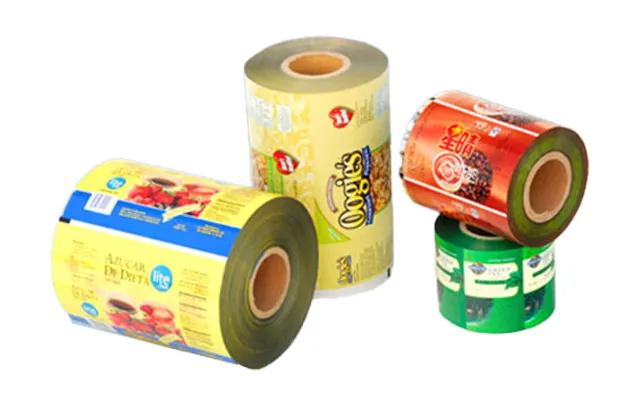

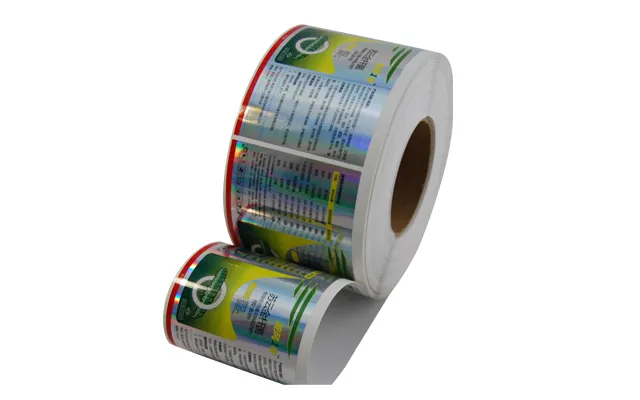

Colour 3.0 Els 180/Min Plastic Film Rotogravure Printing Machine Gallery

OUNUO's system achieves ≤0.05mm hermetic seals with pressure-test certification, ensuring 100% leak-proof performance for liquid products.
