ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.
ZHEJIANG OUNUO MACHINERY TECH. CO.,LTD.

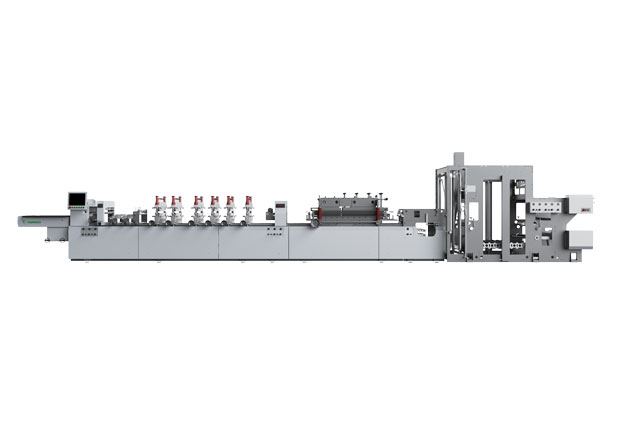

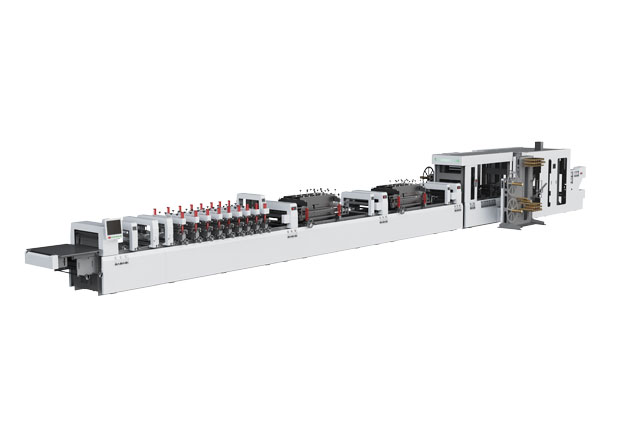

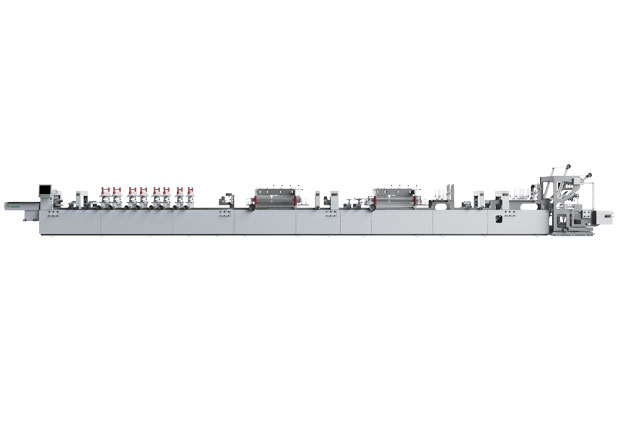

4 Side Seal Pouch Making Machine

As a leading innovator, OUNUO delivers high-speed 4-side seal pouch machines for premium food, pharmaceutical, and industrial packaging. Our servo-driven systems produce 60-100 pouches/minute with airtight ≤0.15mm seals on all edges. Featuring quick-change tooling and smart sensors, we ensure perfect geometry and consistent quality for stand-up and flat pouches.

Features of 4 Side Seal Pouch Making Machine

1

Precision Sealing

Achieves ≤0.15mm airtight seals on all four edges for superior package integrity.

2

High-Speed Production

Servo-driven system delivers 60-100 pouches/minute with consistent output.

3

Intelligent Operation

Integrated sensors automatically adjust tension and temperature for optimal results.

4

Material Versatility

Handles various multi-layer films including aluminum and recyclable materials.

Specifications of 4 Side Seal Pouch Making Machine

Available Pouch TypesCenter seal pouch/center seal with gusset pouch/ 4 side seal with gusset pouch/ side enter seal with gusset pouch, etc.
Maximum Pouch Making ShotMax 240 Pcs/min(about 50m/min)
Pouch Making CapacityDepends on film material and thickness.
Applicable MaterialPE/PE, Laminated films, OPP, BOPP, PET, PE, CPP, etc.
Material Thickness100-230um
Body Film Web Width, Max.1300mm
Body Film Web Dia, Max.Φ800mm
Paper Core Dia, Max.3 inch
Pouch Making Width:
①. Center seal flat pouch
     200-640mm
②. Center seal with gusset

L=30-160mm (gusset folded)
2L=200-640mm		Pouch Making Length:
Pouch making length: 100—420mm (More than 420mm adopts multipled feed)
Gusset Folding LengthL=30-160mm
2L=200-640mm
Positioning Accuracy≤ ±1mm
Heat Sealing MethodMechanical Press Seal
Total Power123kW
Electrical Source4P, AC 380V, 50HZ(Three-phase, four-wire, individually grounded circuits)
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-28500 * W-5000 * H-2100(mm)
Weight13000kg


Machine

4 Side Seal Pouch Making Machine Gallery

OUNUO's 4-side seal pouch machine delivers airtight ≤0.05mm seals with military-grade accuracy, ensuring perfect package integrity for sensitive products.
