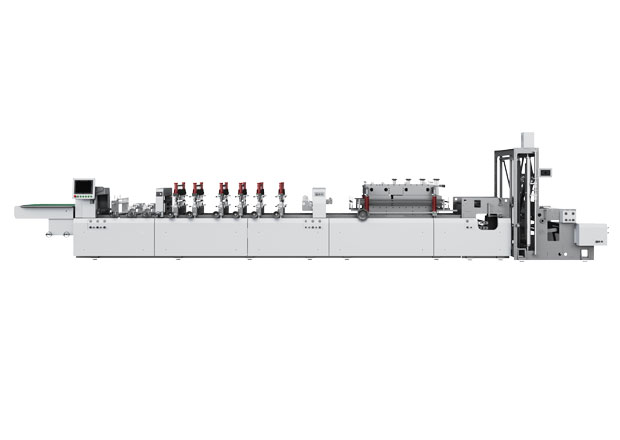

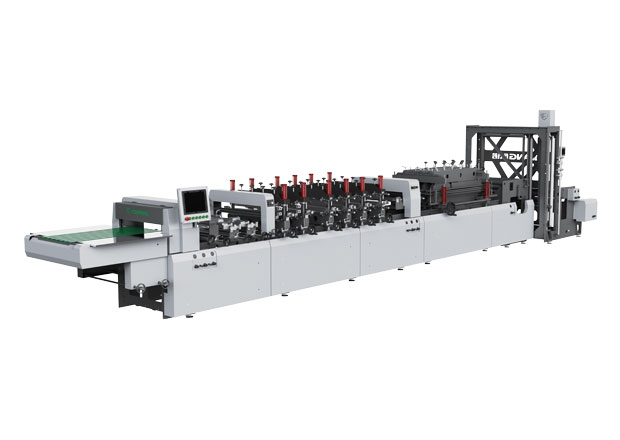

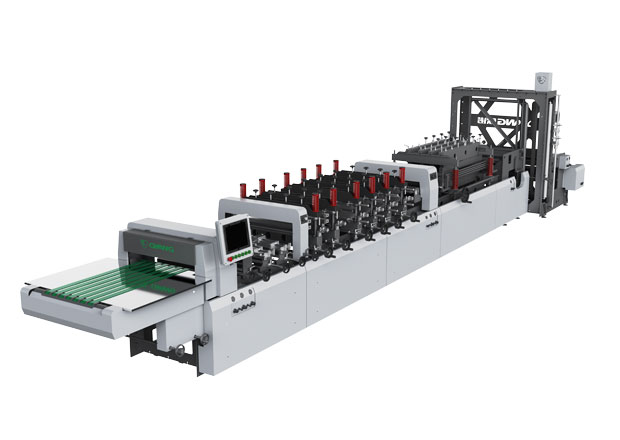

3 Side Seal Pouch Making Machine

As an industry leader, OUNUO delivers high-speed 3-side seal pouch machines for food, medical, and retail packaging. Our servo-driven systems produce 80-120 pouches/minute with ≤0.2mm sealing accuracy. Featuring quick-change tooling and IoT monitoring, we ensure consistent quality while reducing material waste.

Features of 3 Side Seal Pouch Making Machine

1

High-Speed Production

Servo-driven system delivers 80-120 pouches/minute with precise sealing.

2

Perfect Sealing Quality

Achieves ≤0.2mm sealing accuracy with automatic temperature control.

3

Material Versatility

Handles various films including PET/AL/PE from 3-8 layers.

4

Smart Operation

IoT-enabled monitoring system for real-time quality tracking.

Specifications of 3 Side Seal Pouch Making Machine

Pouch Types3 side seal
*Pouch Making Capacity230 Pcs/min(Mechanical design speed 240 Pcs/min) about 50m
Three-side-seal speed value range: 30-230 Pcs/min(pouch width≤130mm, pouch height≤410mm, Thickness≤90um);
(Set the maximum pouch making speed according to pouch length, original film material, pouch width and pouch making specifications, etc.)
Applicable MaterialPE/PE, Laminated films,
OPP, BOPP, PET, PE, CPP, etc.
Material Thickness40-160μm
Body Film Web Width, Max.1300mm
Body Film Web Dia, Max.Φ800mm
Pouch making specifications and sizesPouch Making Length:
Three-side-seal type pouch width: 60~650mm(The length can be made 6 times as long.)60-420mm((Double feeding device can be used when it is too long)
The above pouches can be welded with zipper seals.
Pouch making cumulative fixed length error± 0.3mm (per 100 pouches), color printing positioning photoelectric, on the premise of genuine film, the photoelectric color mark will not be lost. The hot sealing of production pouches should be flat, clear and beautiful.
Note: (The actual running speed will decrease due to pouch type, material, etc.)
Heat Sealing MethodMechanical Press Seal
Total Power60kW
Electrical SourceVoltage: three-phase 380V/50HZ + N + PE
Air Pressure0.6 Mpa (6 kWfcm2)
Cooling Waterabout 10L/min
Machine ColorBody Black Phosphating, Stainless Steel Safety Shield
SizeL-10000 * W-1900 * H-1932(mm)
Weight6000kg


Machine

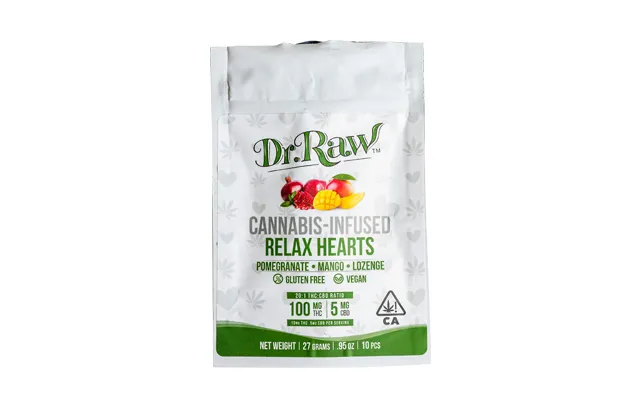

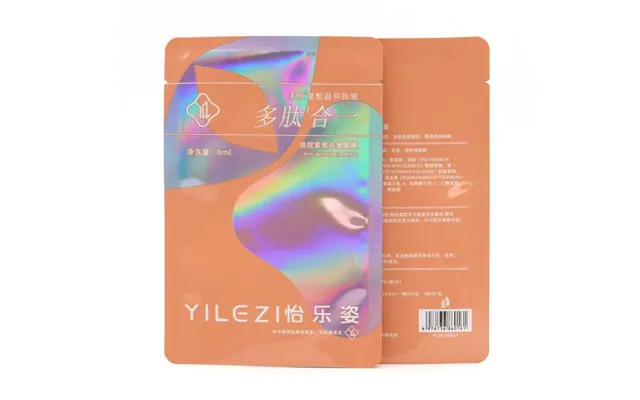

3 Side Seal Pouch Making Machine Gallery

OUNUO's 3-side seal pouch machine achieves ±0.05mm sealing accuracy at 150ppm with servo-driven synchronization and real-time thermal monitoring for flawless packaging integrity.

3 side seal pouch making machine gallery manufacturers
